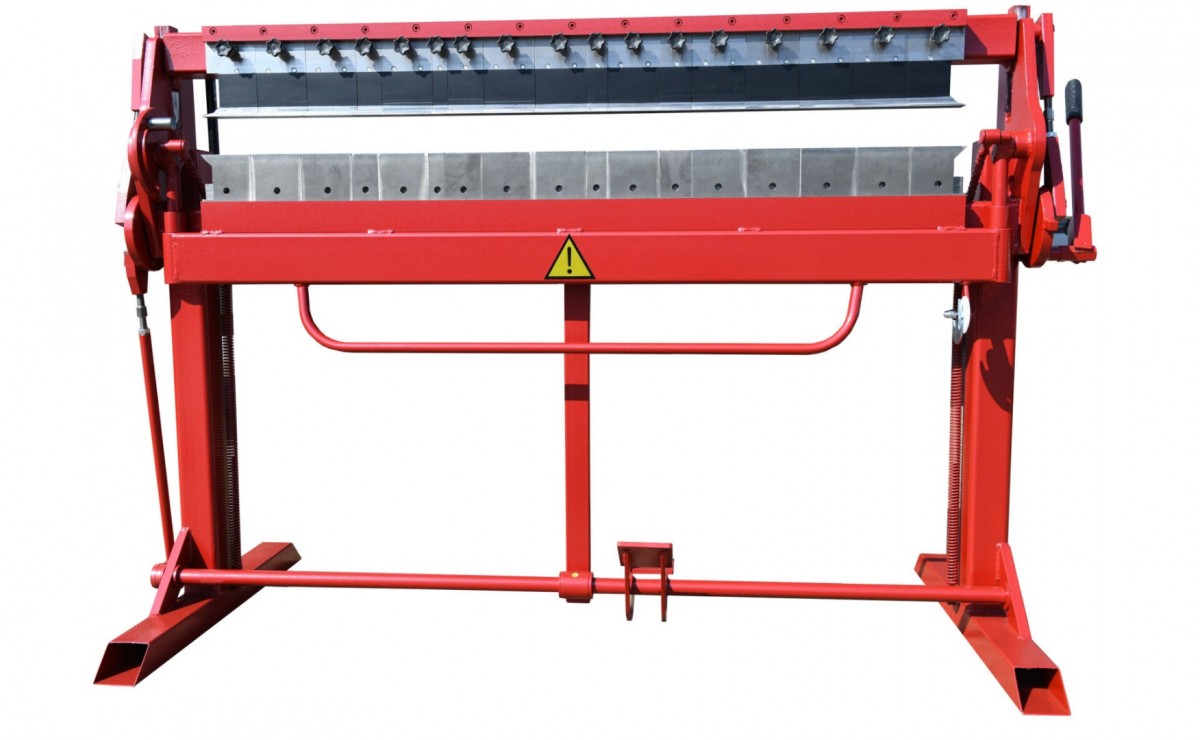

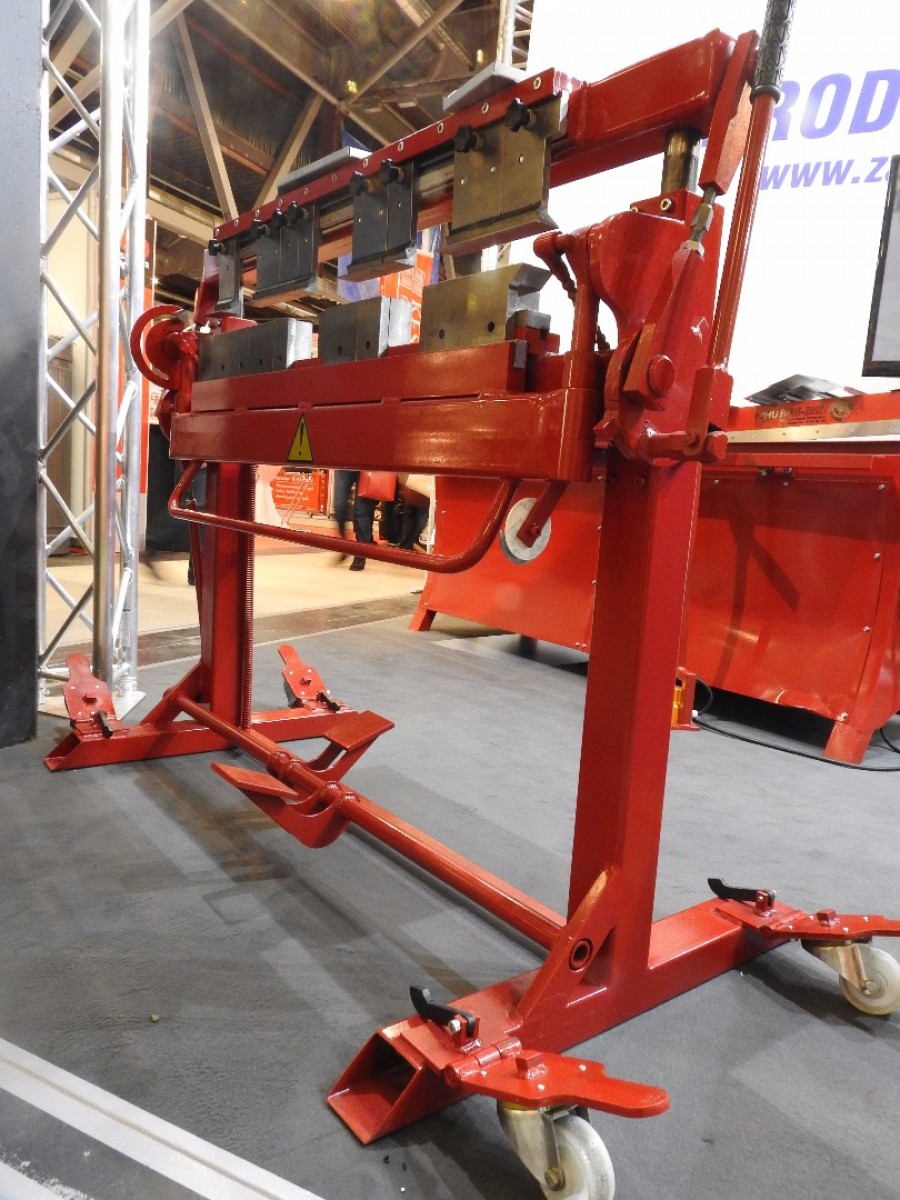

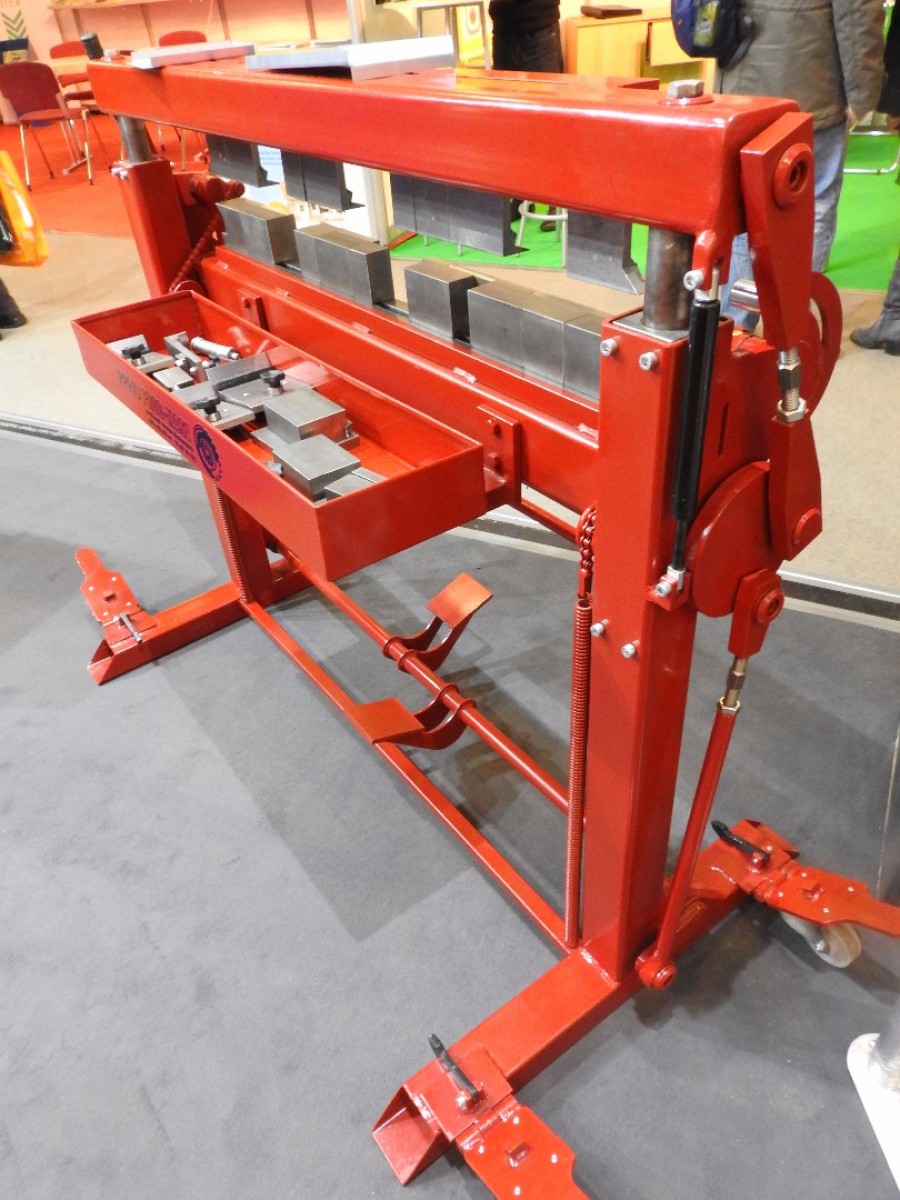

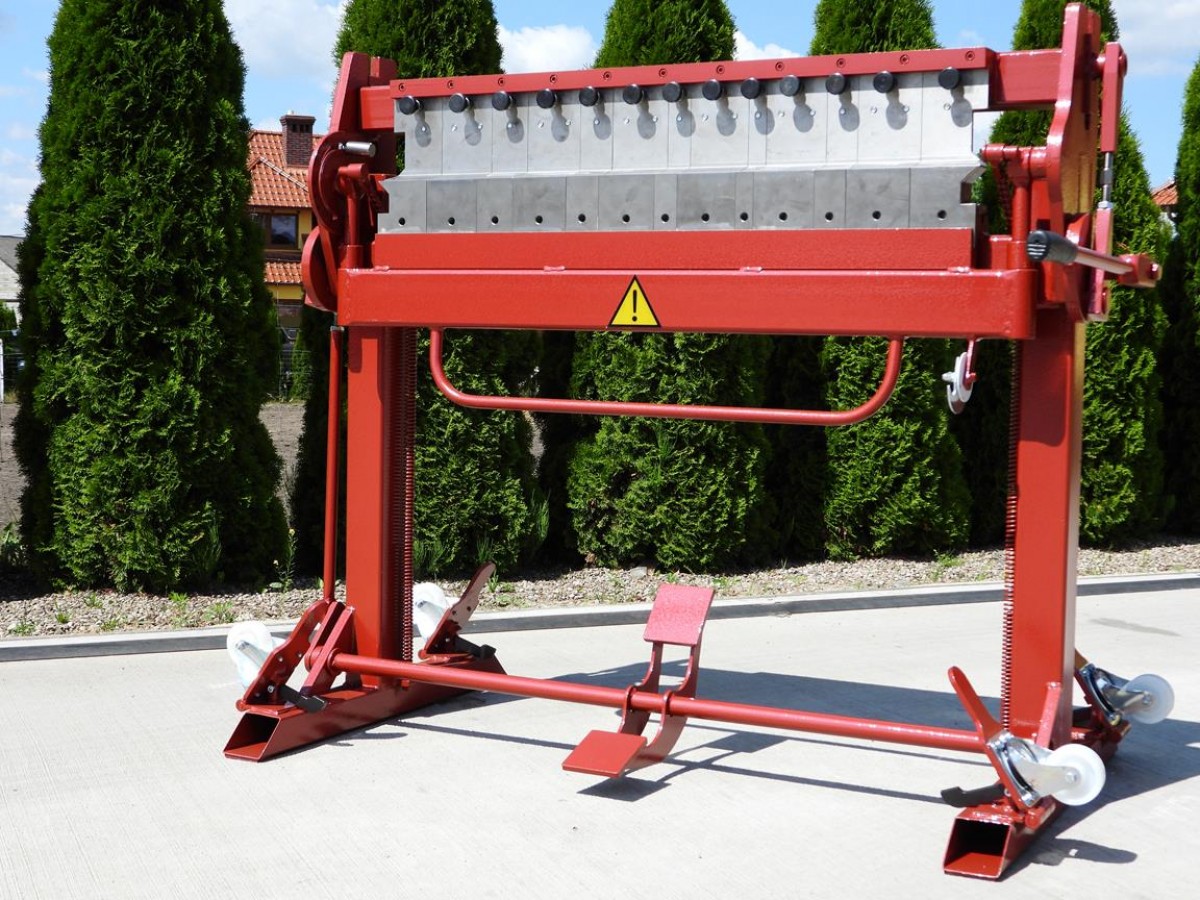

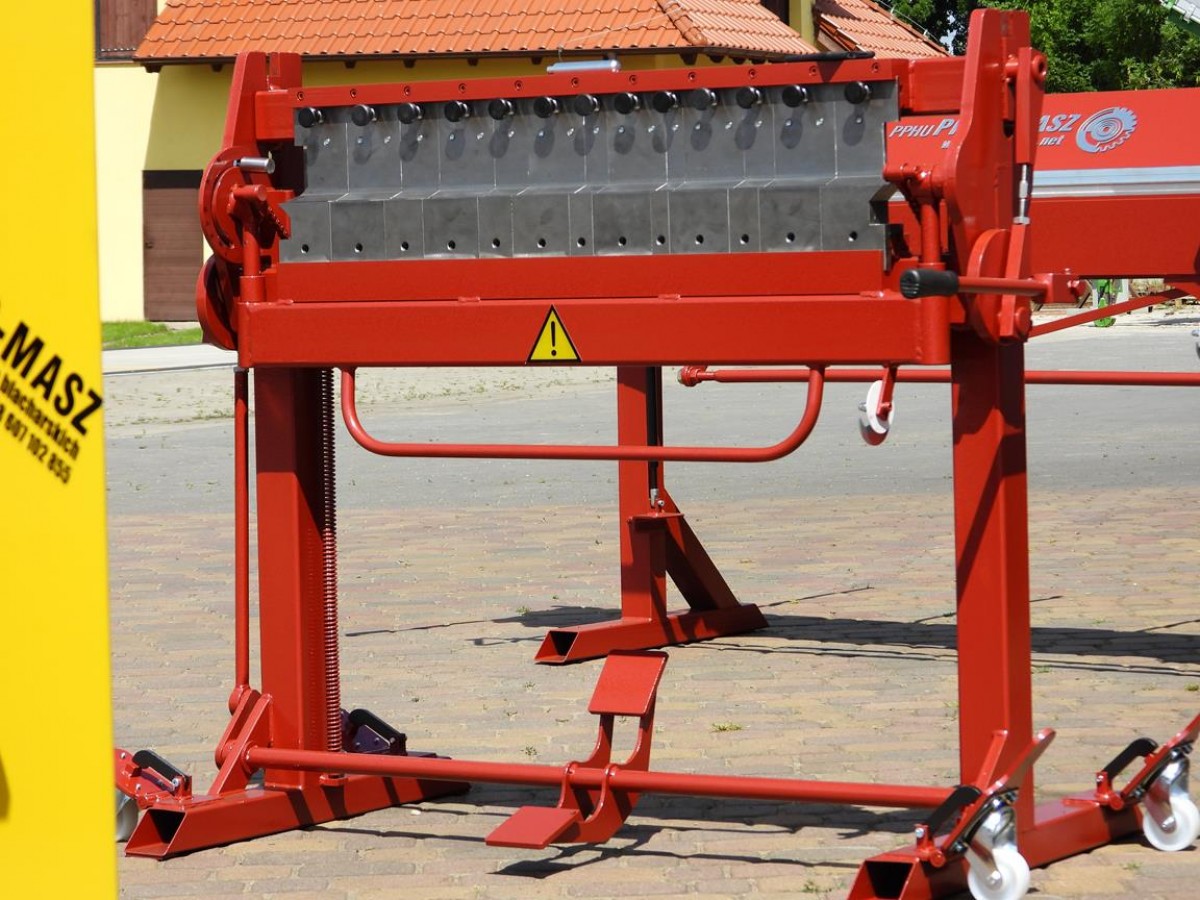

Sheet metal folder with segments SGR-1000/1.5 / box and pan folder

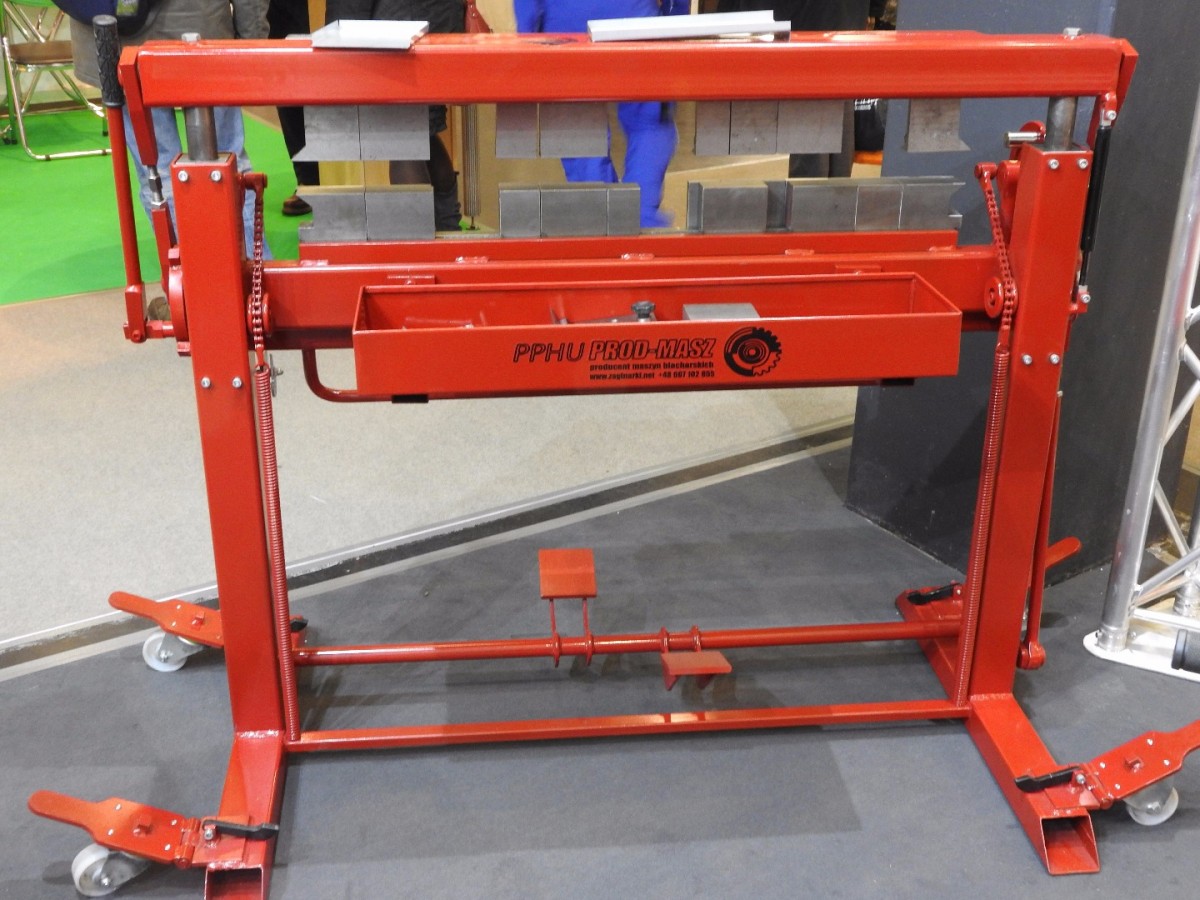

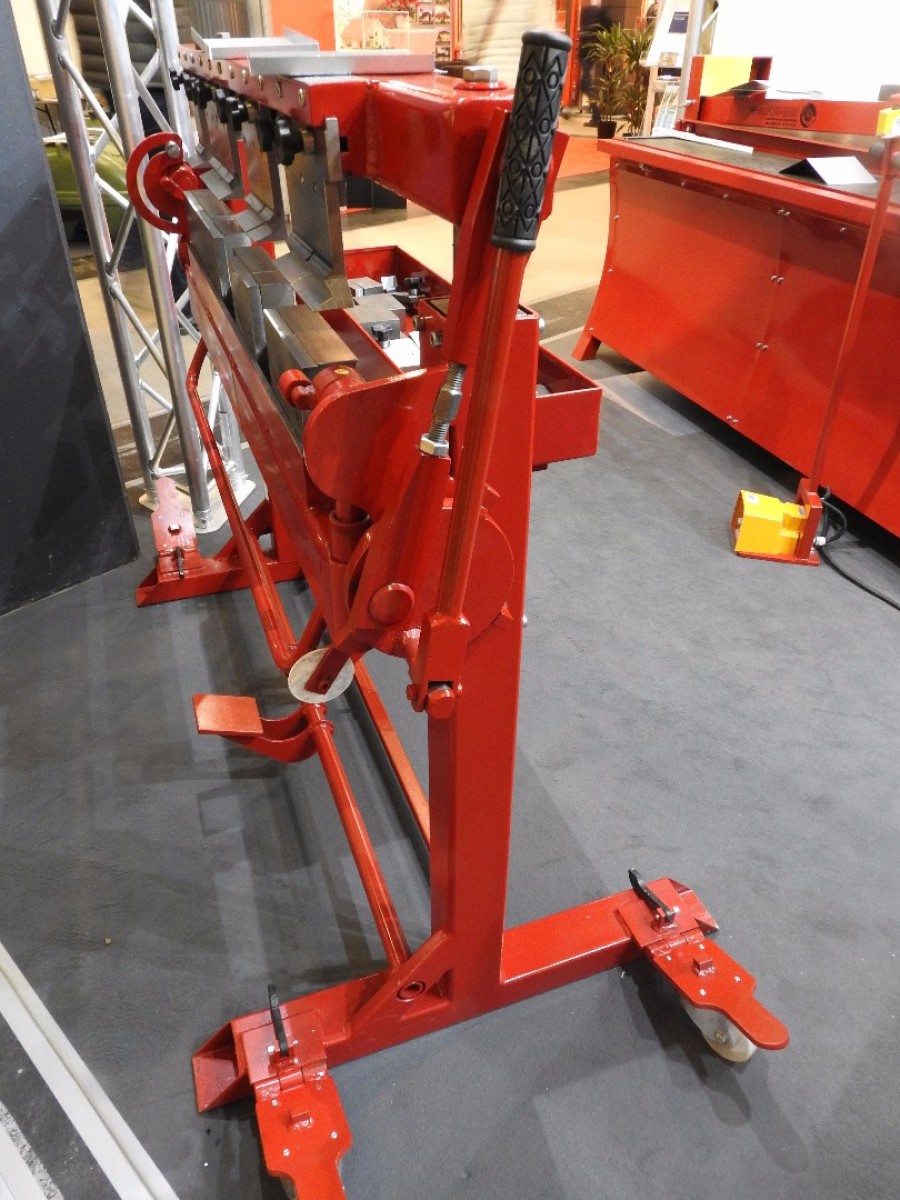

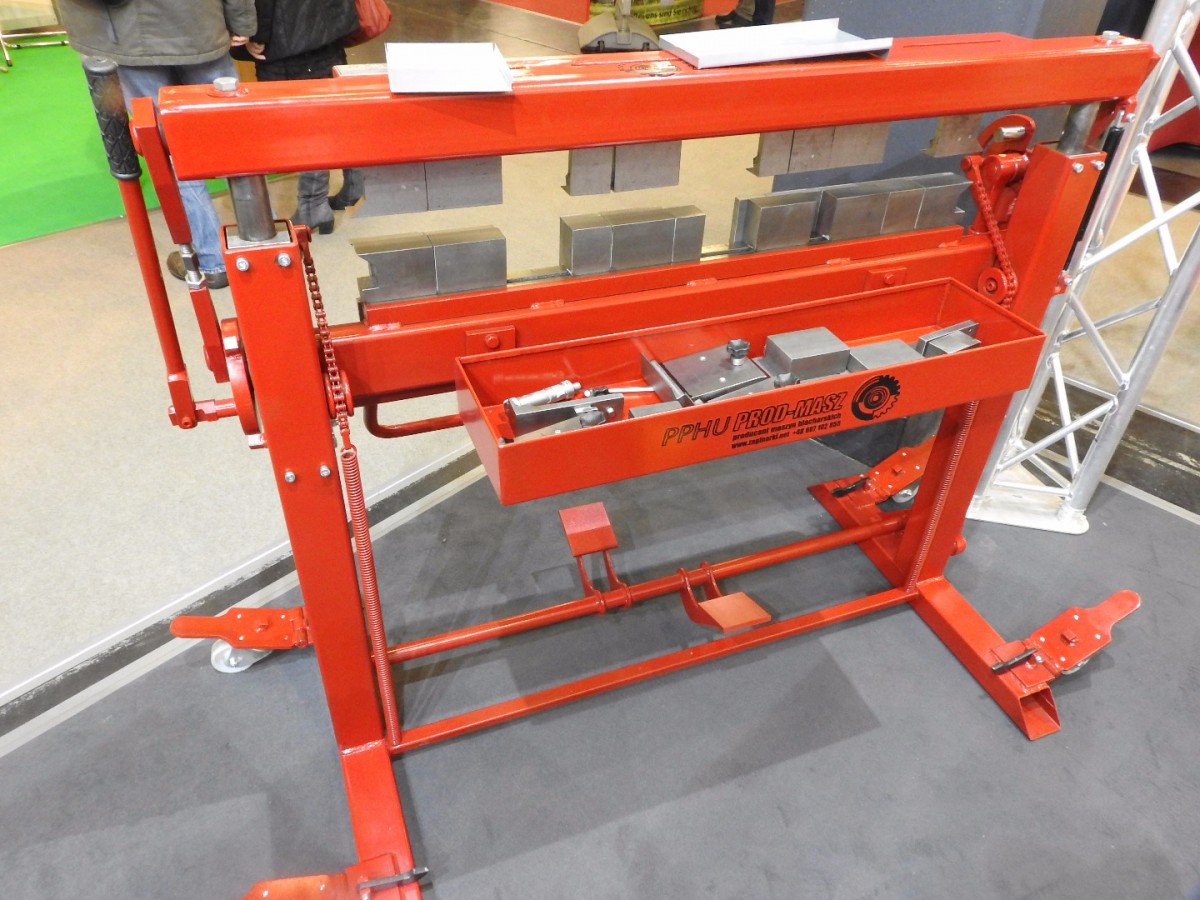

3-fold segmented bending machine with foot control
- EU production

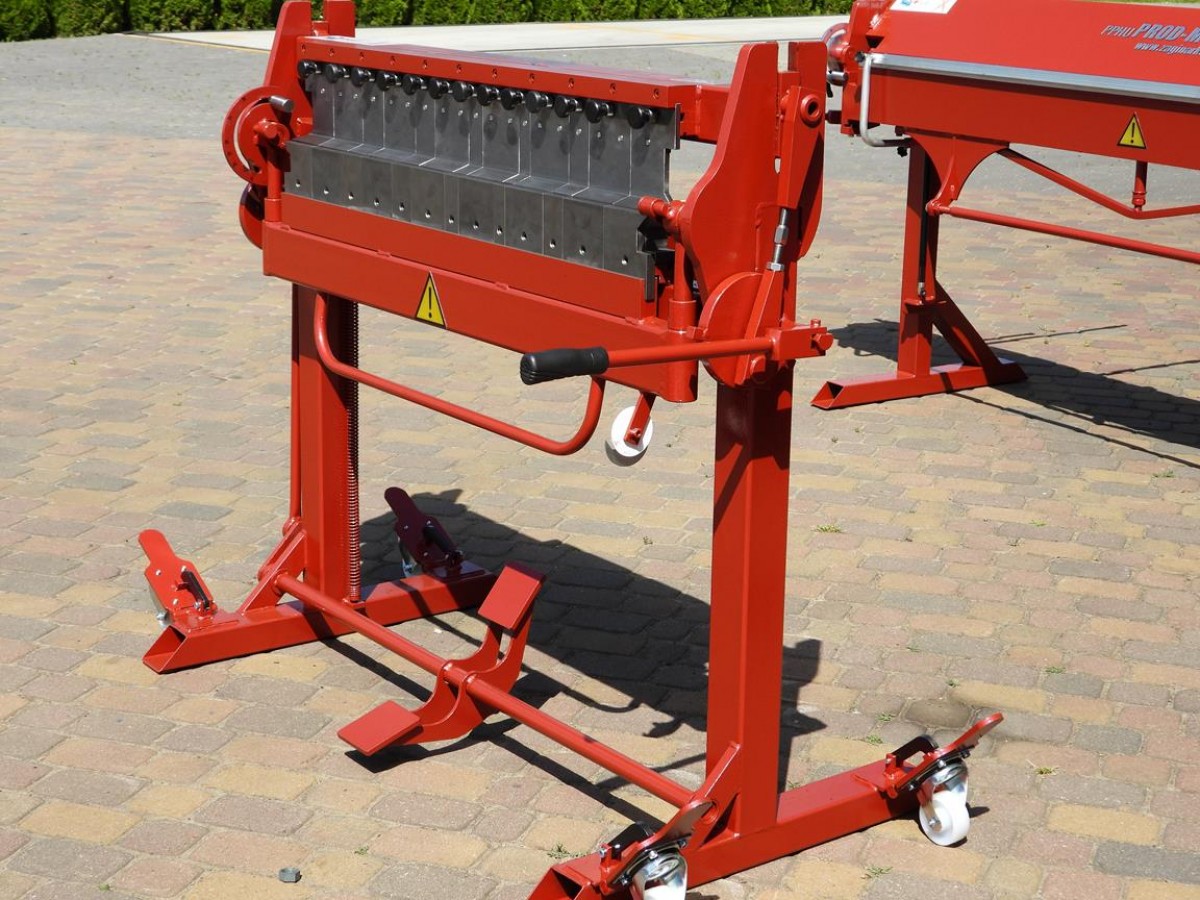

- Folding bench with foot control
- Segmented upper beam, lower beam and bending beam

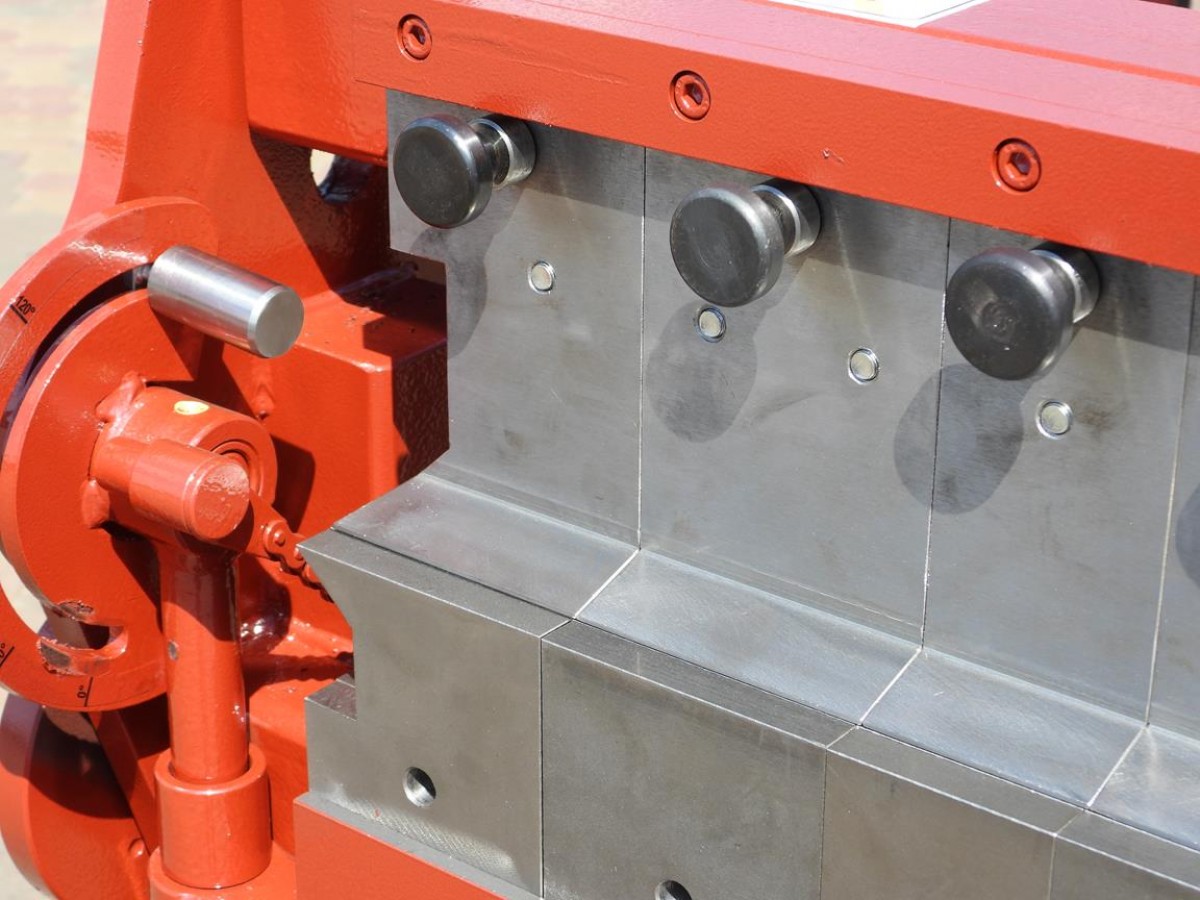

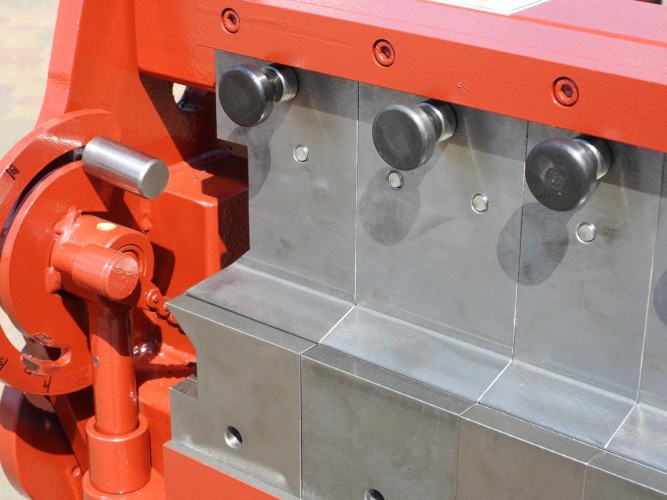

- Precision ground bending segments,
- Segments with triple guidance for easy and quick adjustment
- Our bending machine is a well-dimensioned all-welded construction with foot-operated upper beam feed, which greatly simplifies and speeds up the work process, as both hands are free to insert and align the material.
- The easily and quickly adjustable bending angle stop ensures that the required bending angle can be produced and repeated countless times, even in large series

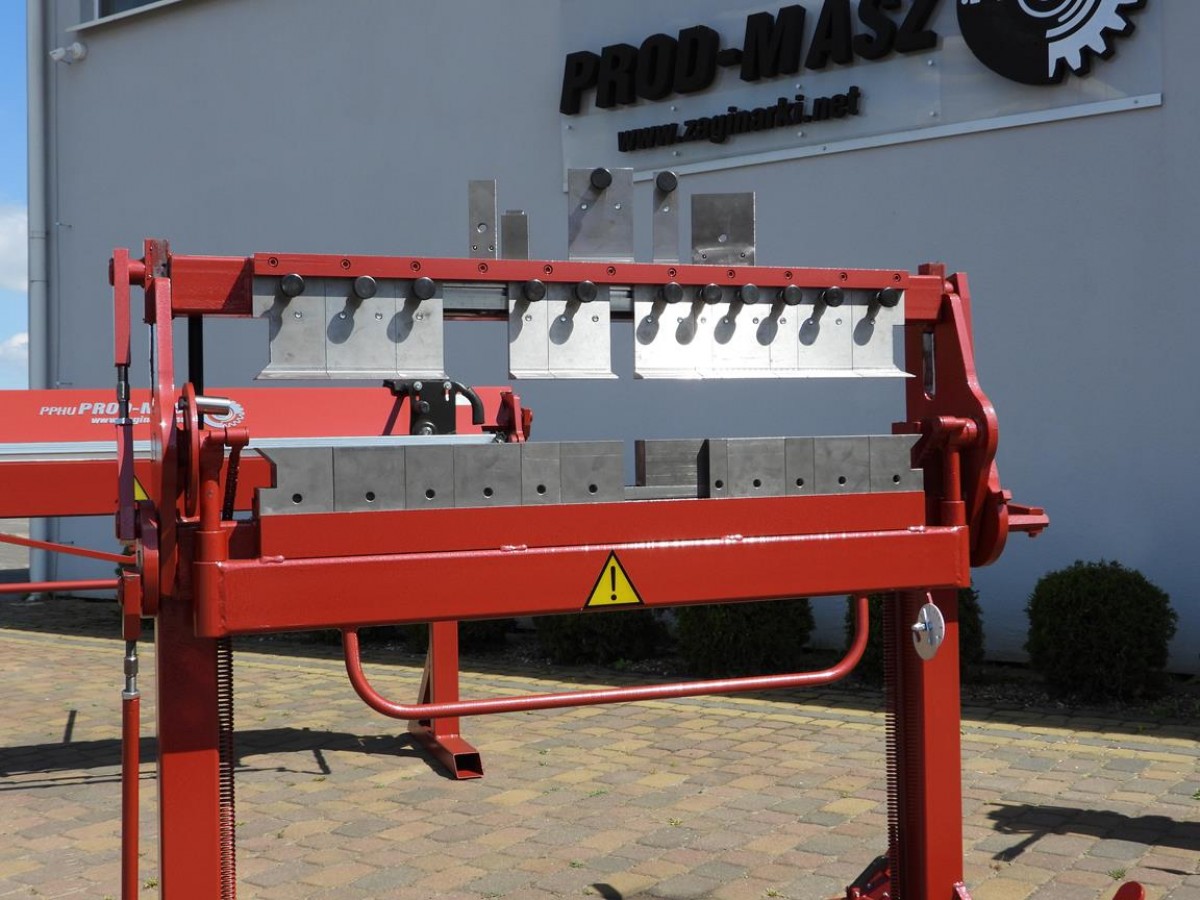

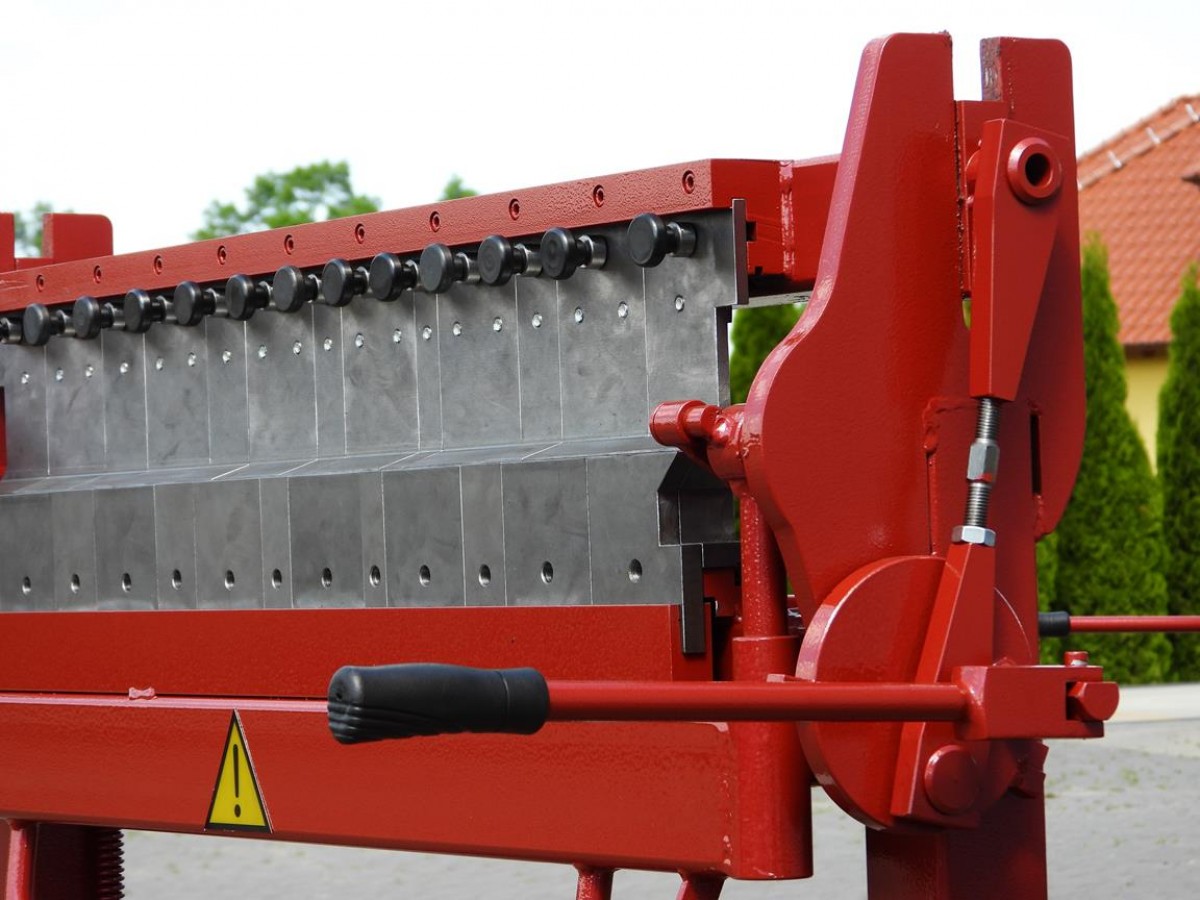

- Upper beam, lower beam and bending beam segmented (piano)
- Segments are movable and removable
Description
| Max. working width: 1050 mm |
| Bending angle max. 160 degrees |
| Max. sheet thickness (steel) 1.5mm |
| Weight 235 kg |
| Segmentback width 30,40,50,60,70 and 100 mm |
| three cheeks are equipped with segment jaws (full segmentation) |
| application for preset bending angles |
| maximum clearance between bars 100 mm |
Why choose PROD-MASZ products?
| Precise design |
| 12 months warranty |
| Highest quality |
| Special flexibility |
| EU Product with CE certificate |
| Versatility |
| Made in CNC technology |
Technical data
