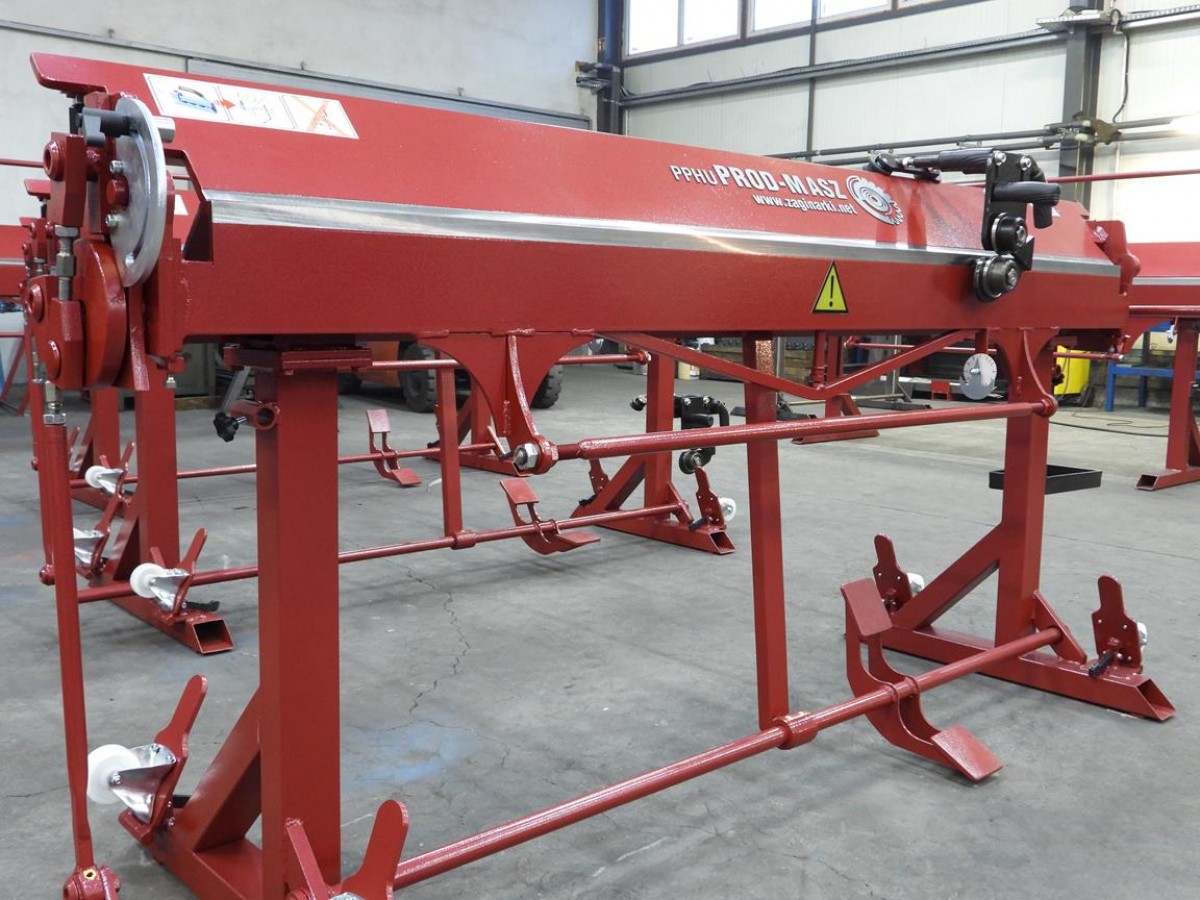

Sheet metal folder RED PLUS 2200 / 0.8mm

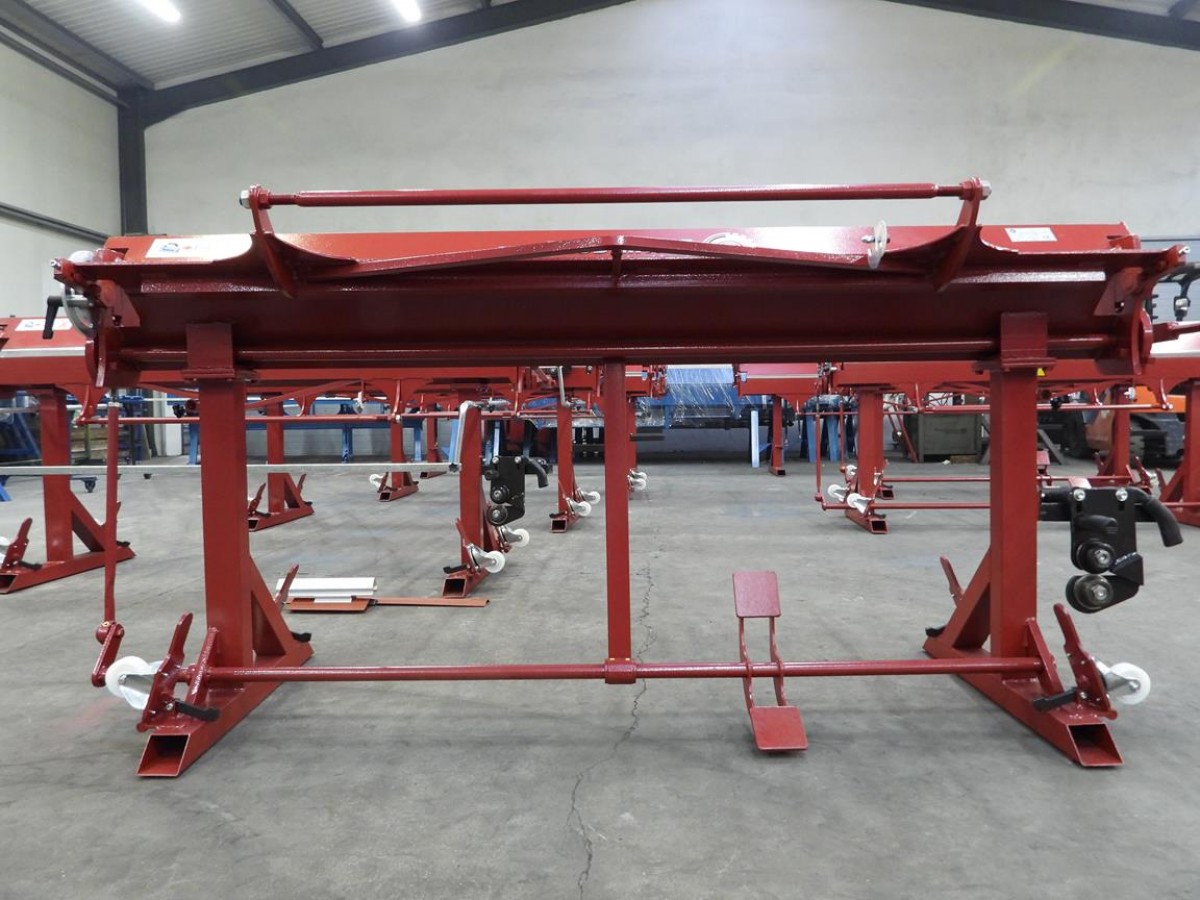

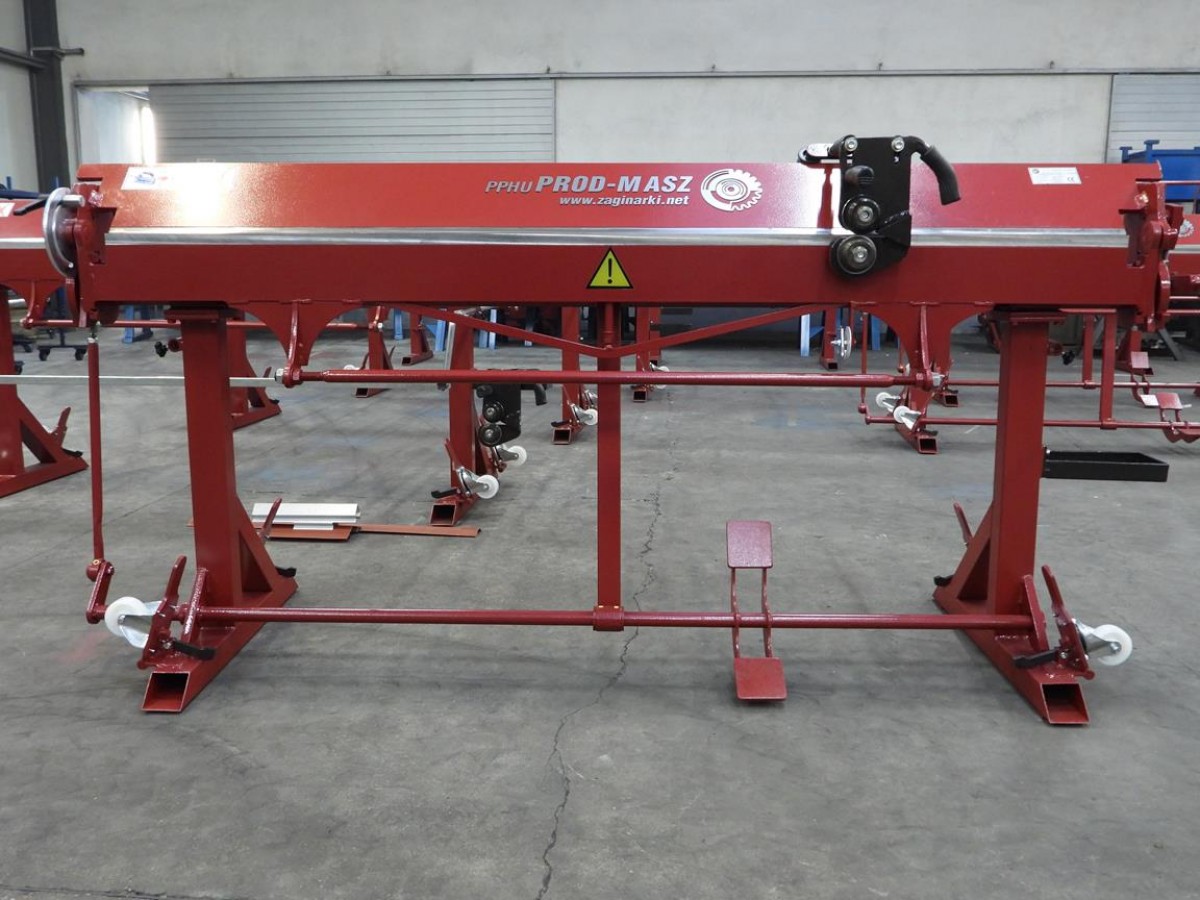

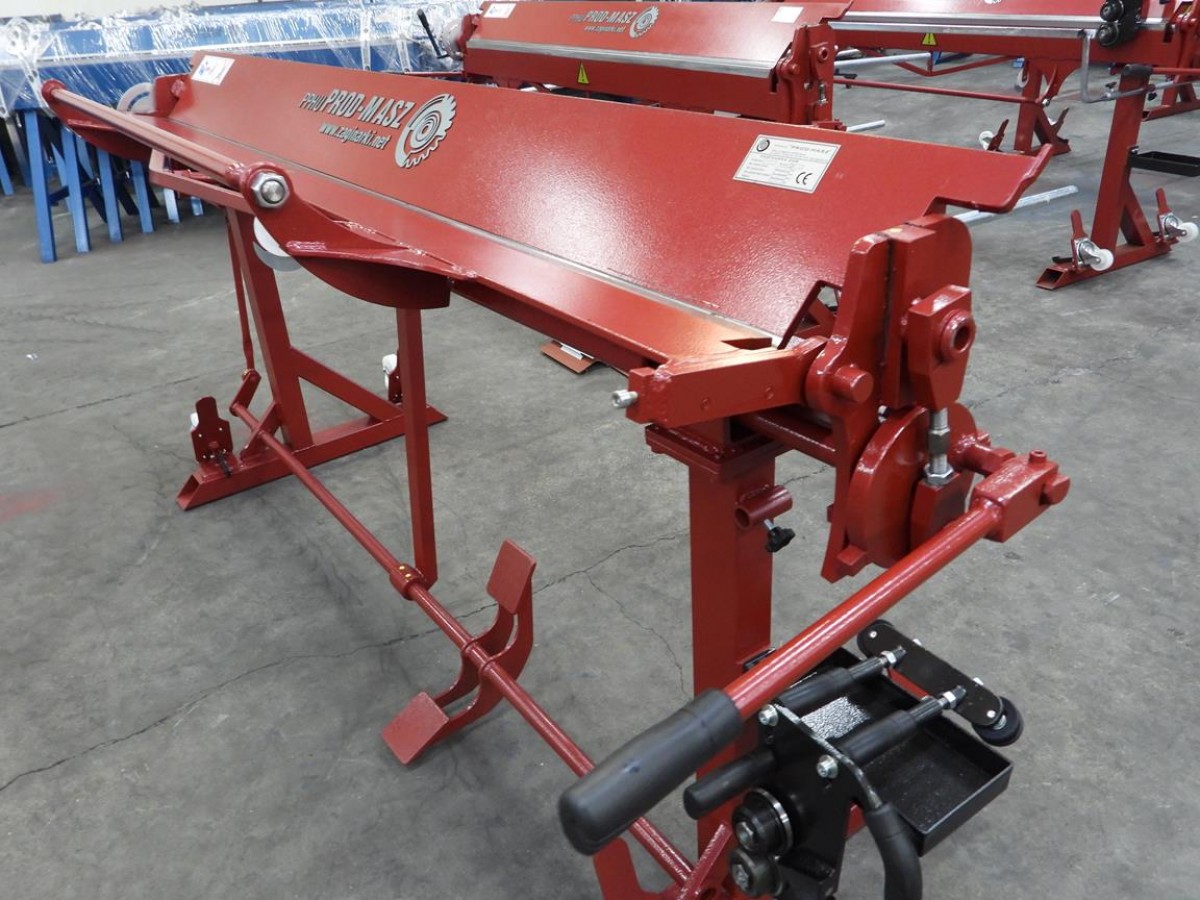

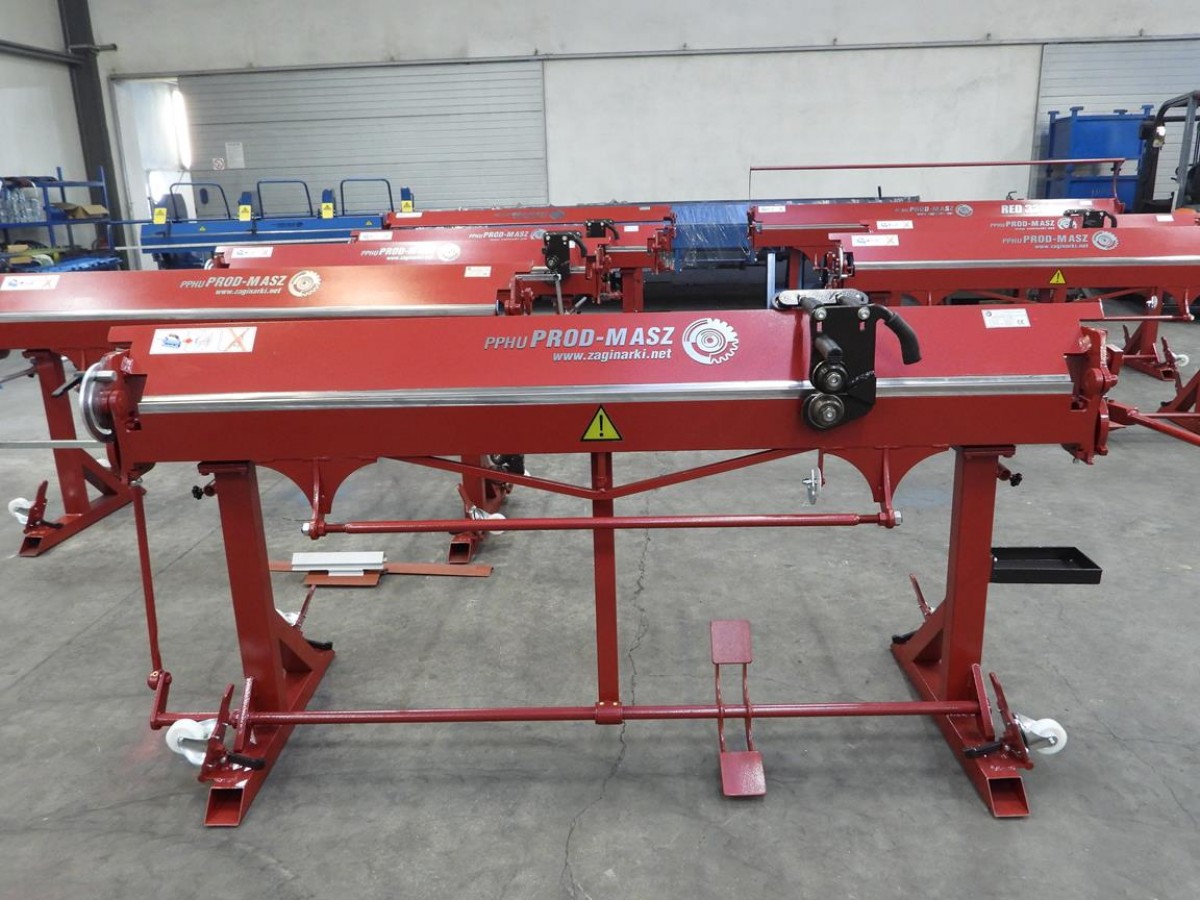

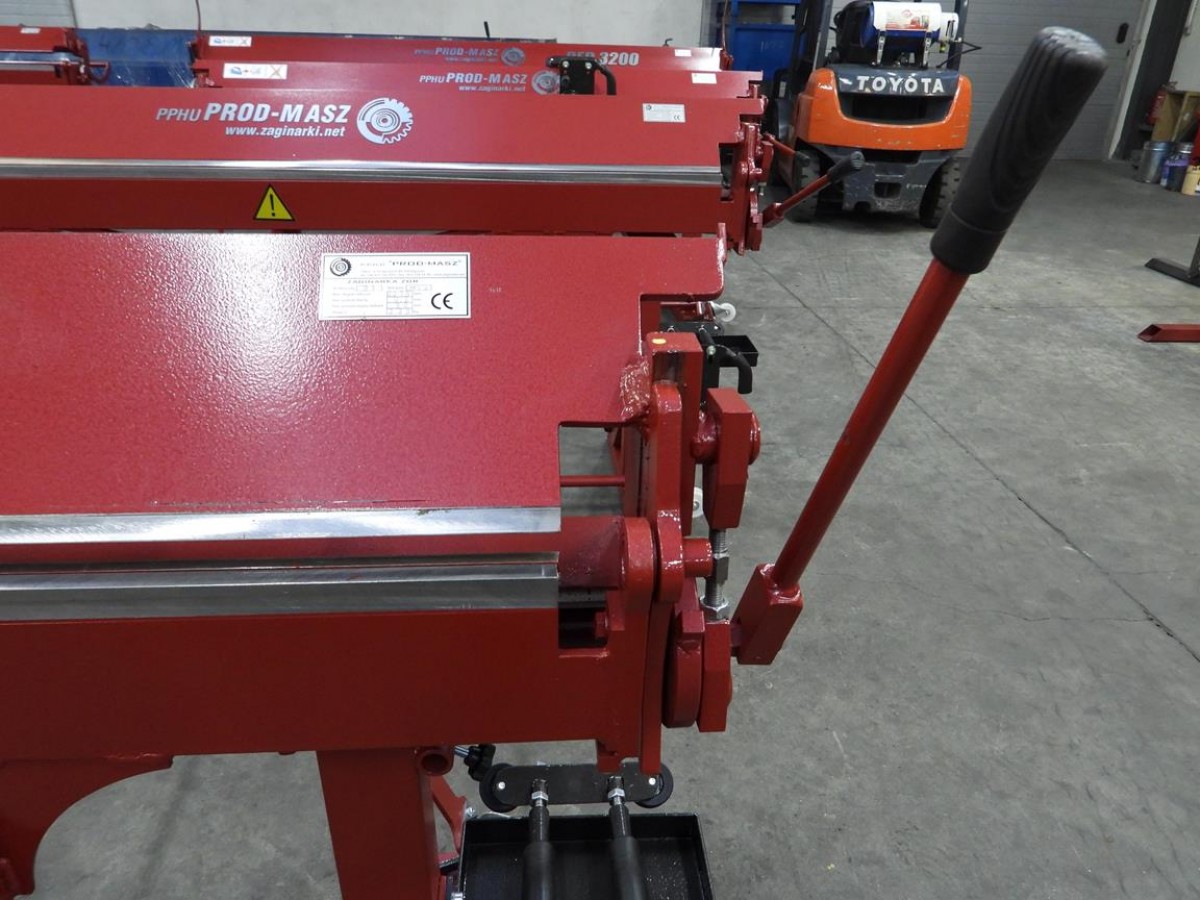

High quality of workmanship and attention to detail of all elements ensure reliable and long-term use of this modern bending machine. The application possibilities have been expanded by using a foot mechanism. Thanks to this, the sheet metal can be bent in any position and there is no need to grab the lever on the right side of the machine. This increases both the accuracy and speed of positioning the workpiece on the bending edge.

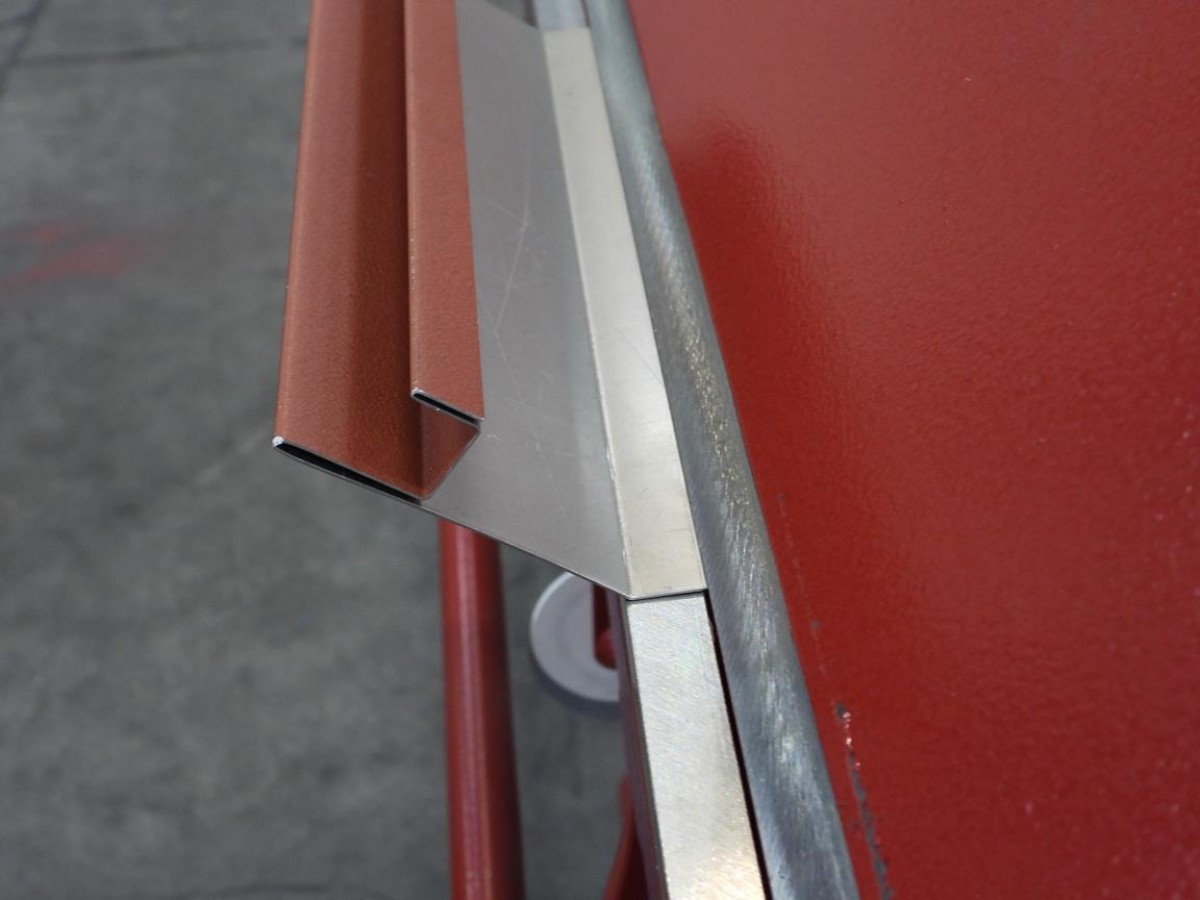

With this foot bending machine, you can bend sheet metal from three sides. The machine structure has a space of 6 cm up and down.

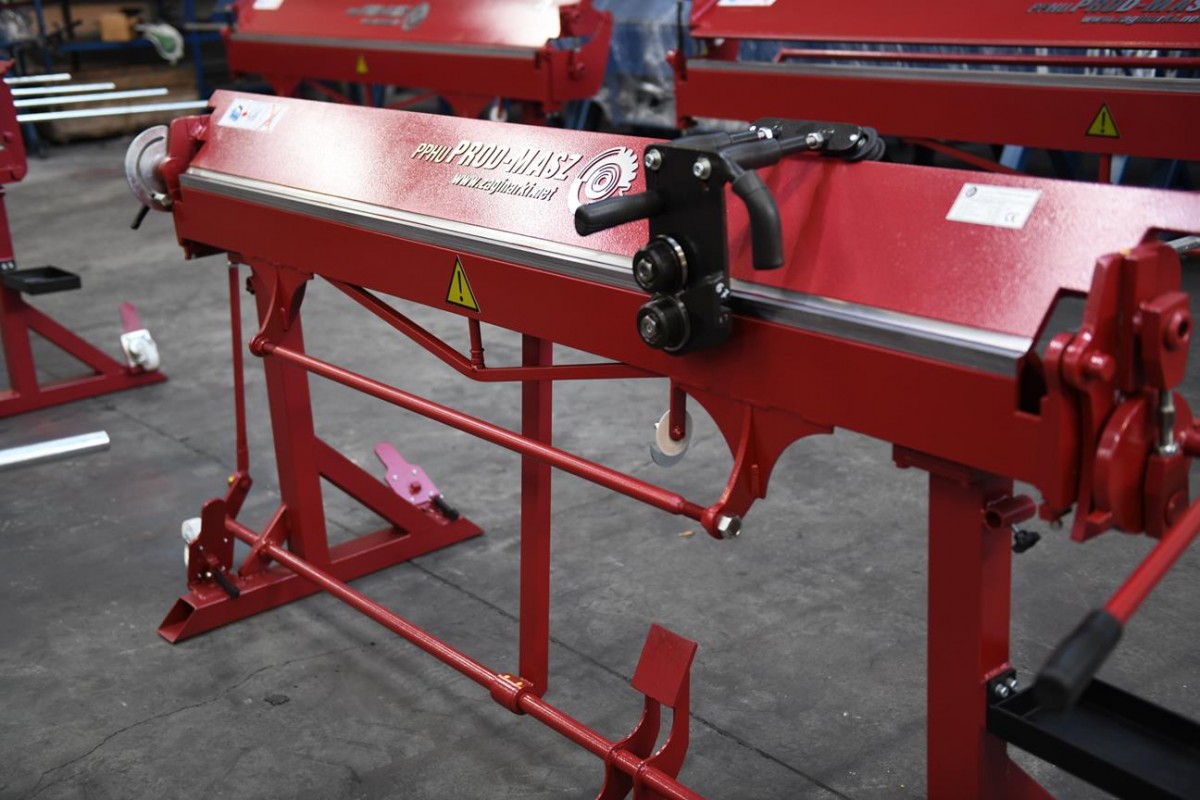

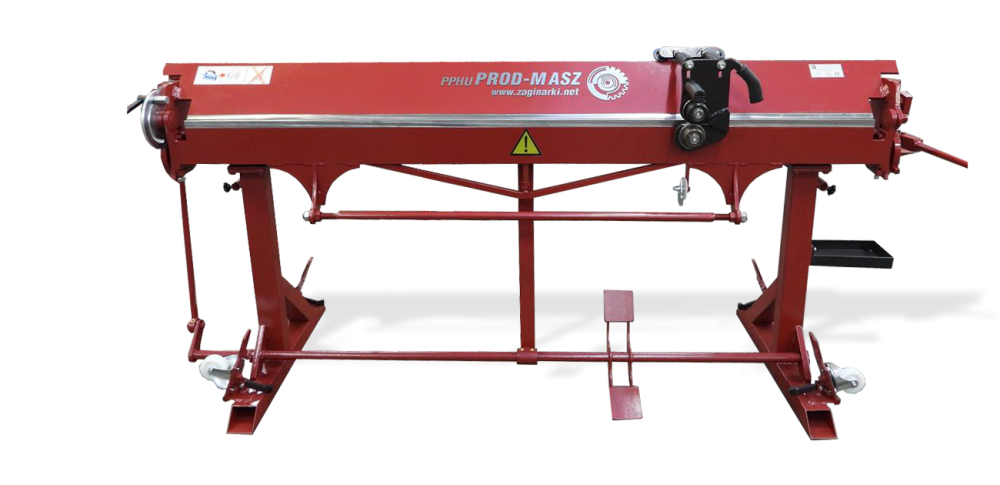

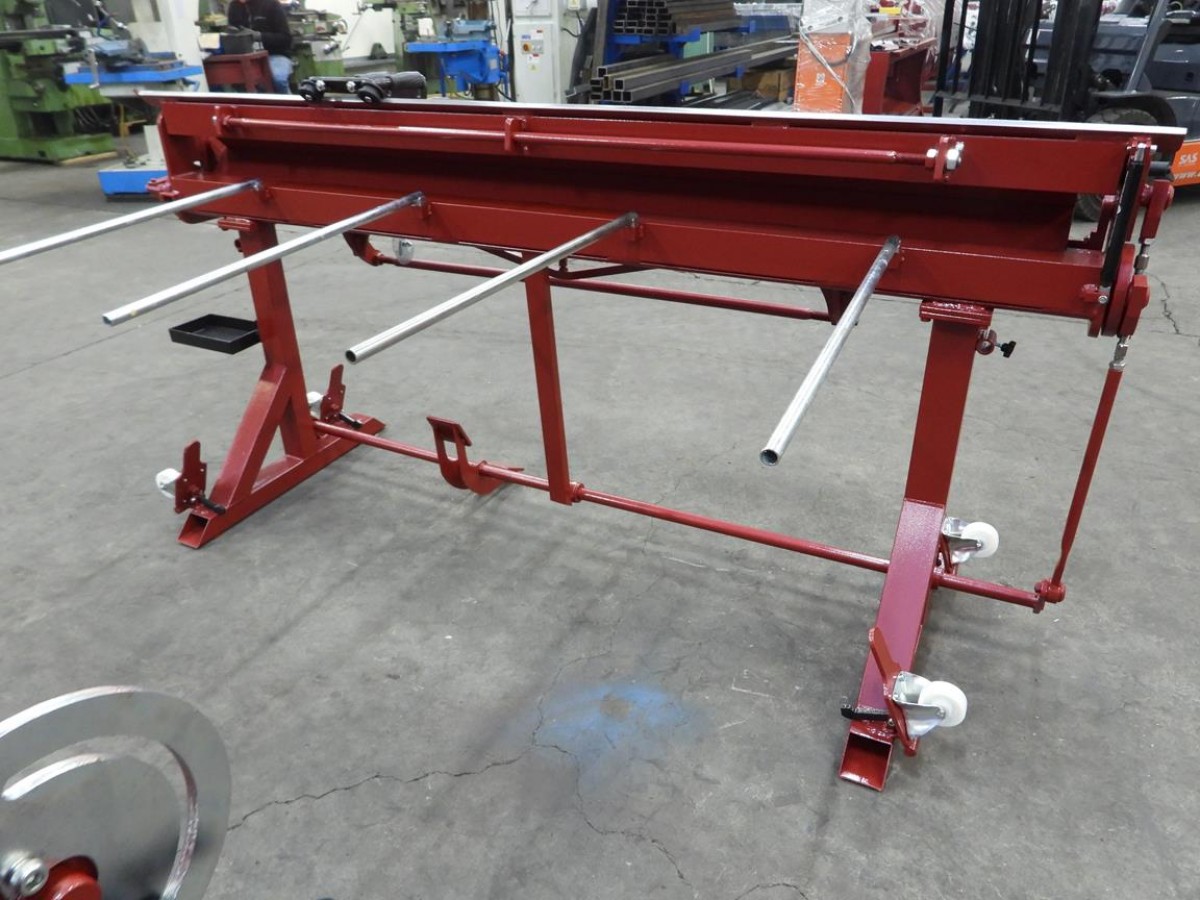

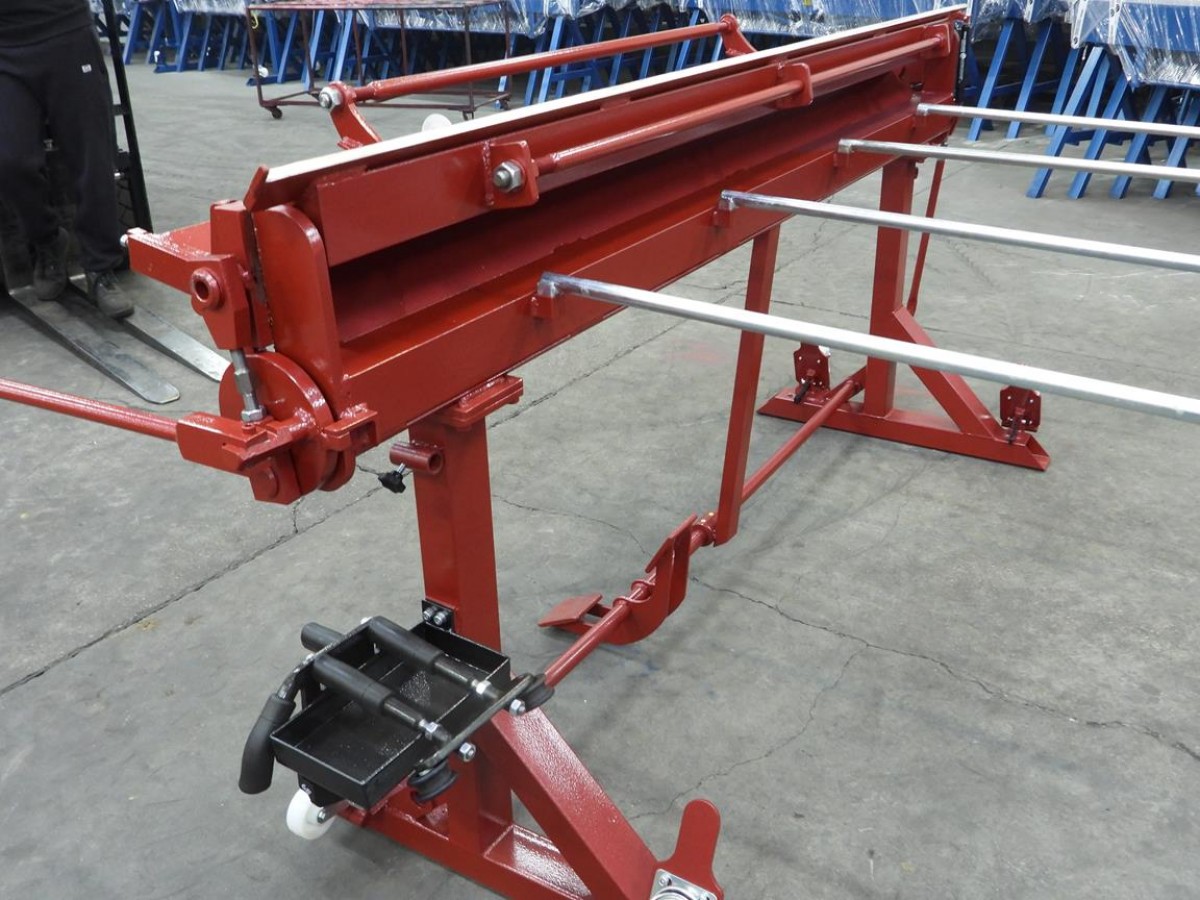

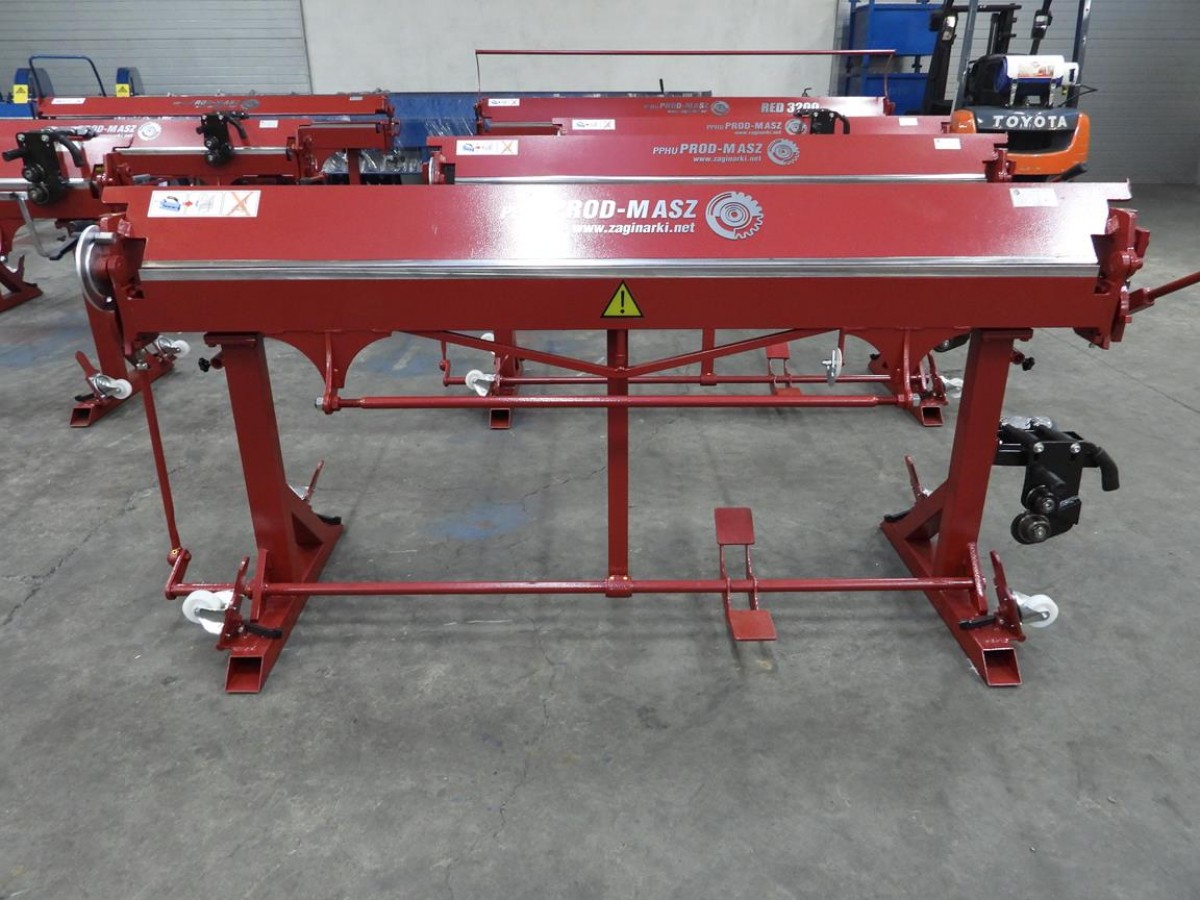

The RED PLUS 2200 / 0.8 bending machine includes roller cutters, foot control and transport rollers
With this foot bending machine, you can bend sheet metal from three sides. The machine structure has a space of 6 cm up and down.
The RED PLUS 2200 / 0.8 bending machine includes roller cutters, foot control and transport rollers
Description
| maximum working width: 2200 mm |
| Bending efficiency: up to 0.8 mm (steel sheet) |
| All non-ferrous metals have 30% more bending force |

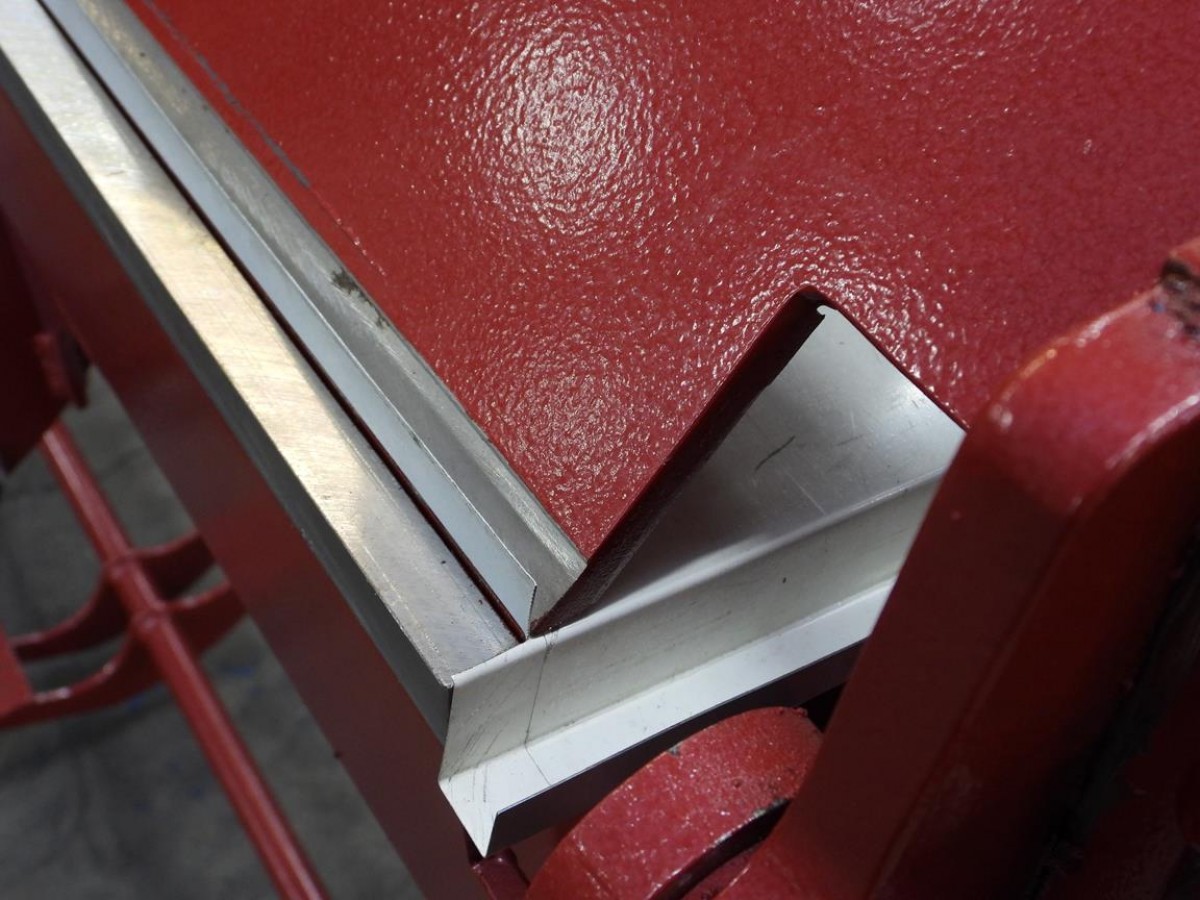

| Bending angle: max. 145 degrees |
| Cutting with roller scissors over the entire working width |

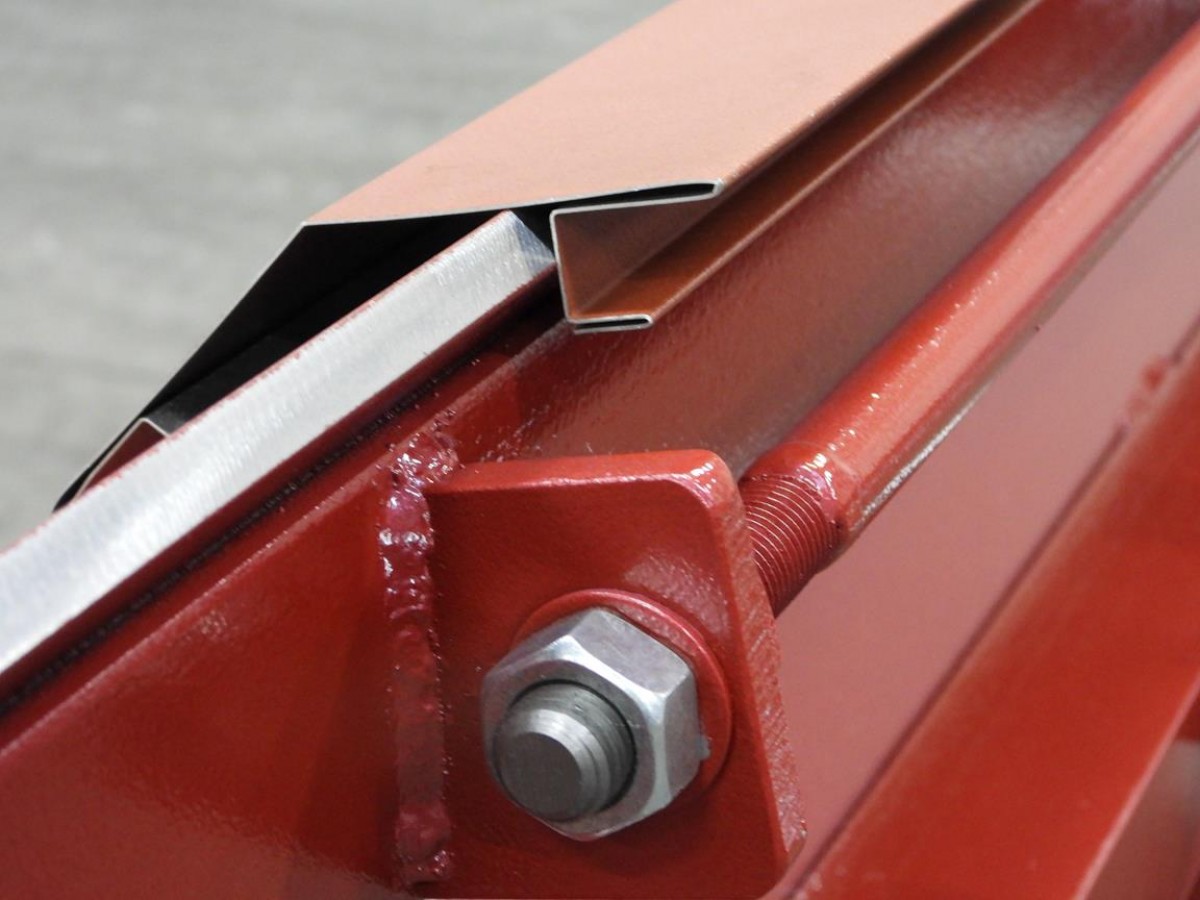

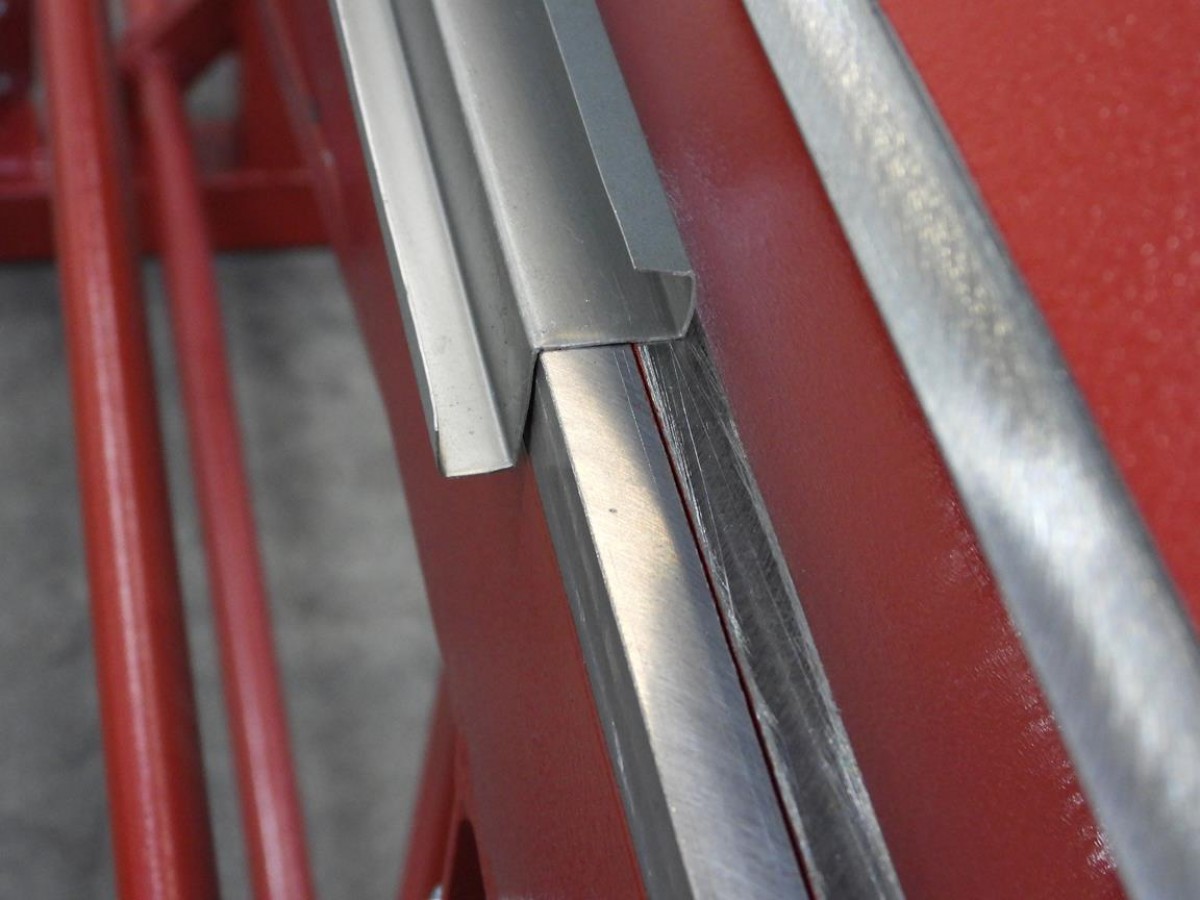

| Bending beam thickness: 15 mm |

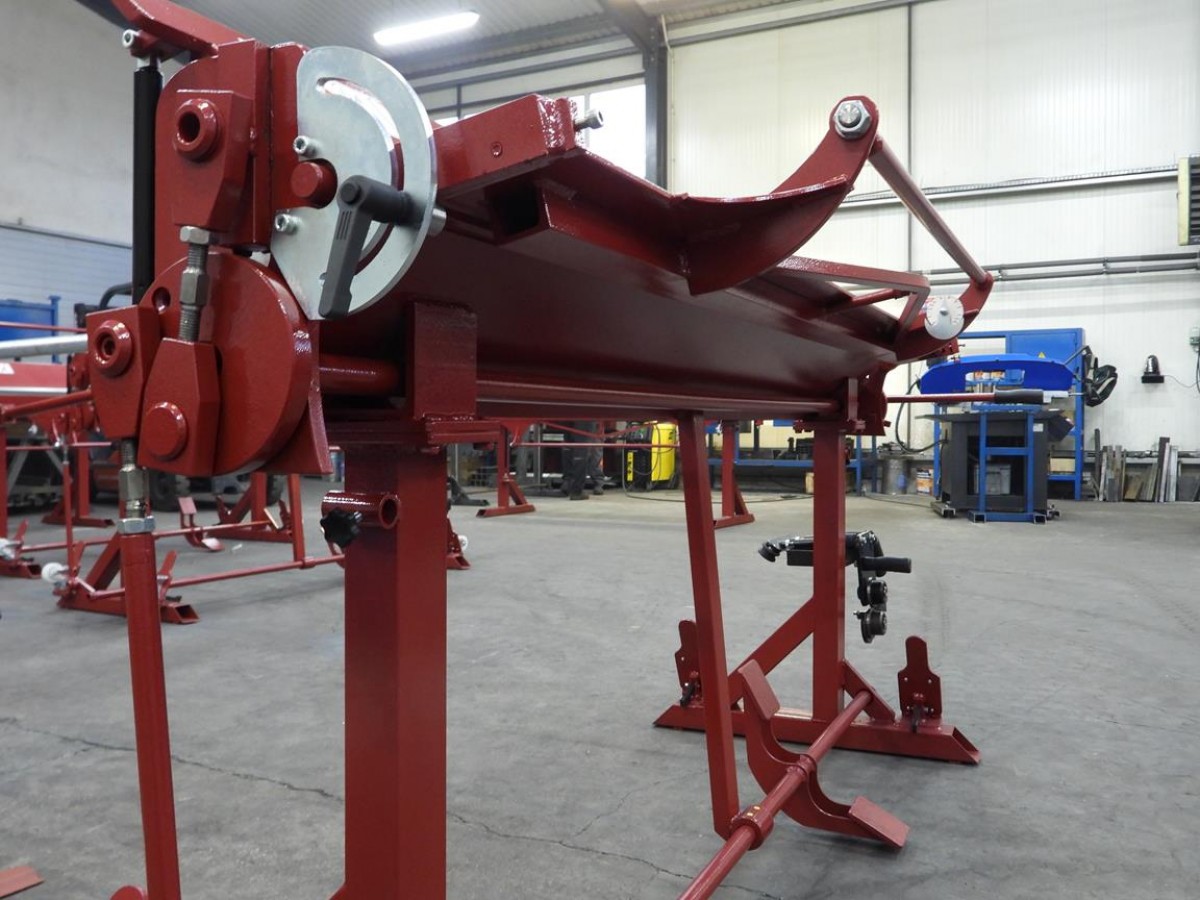

| lifting the upper beam in three positions |
| max. opening: 80 mm |

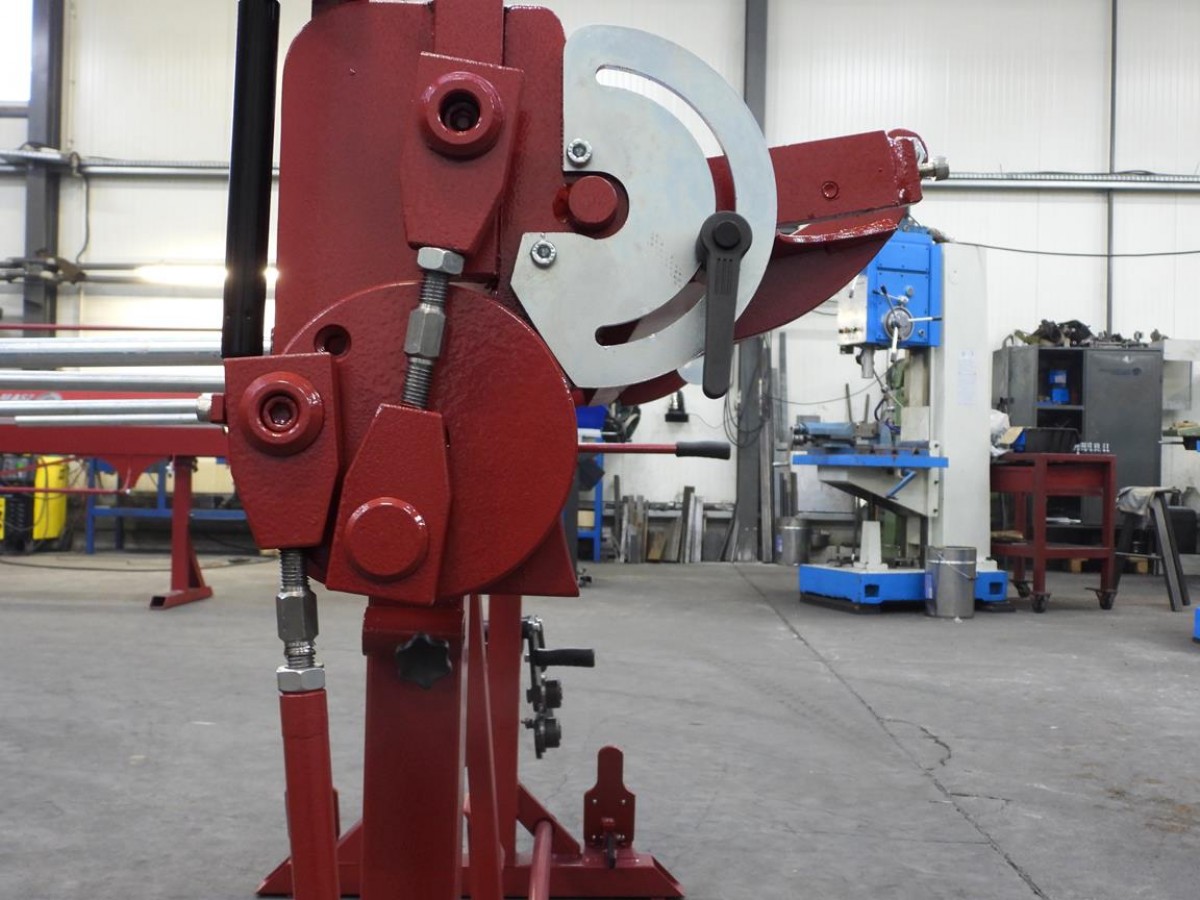

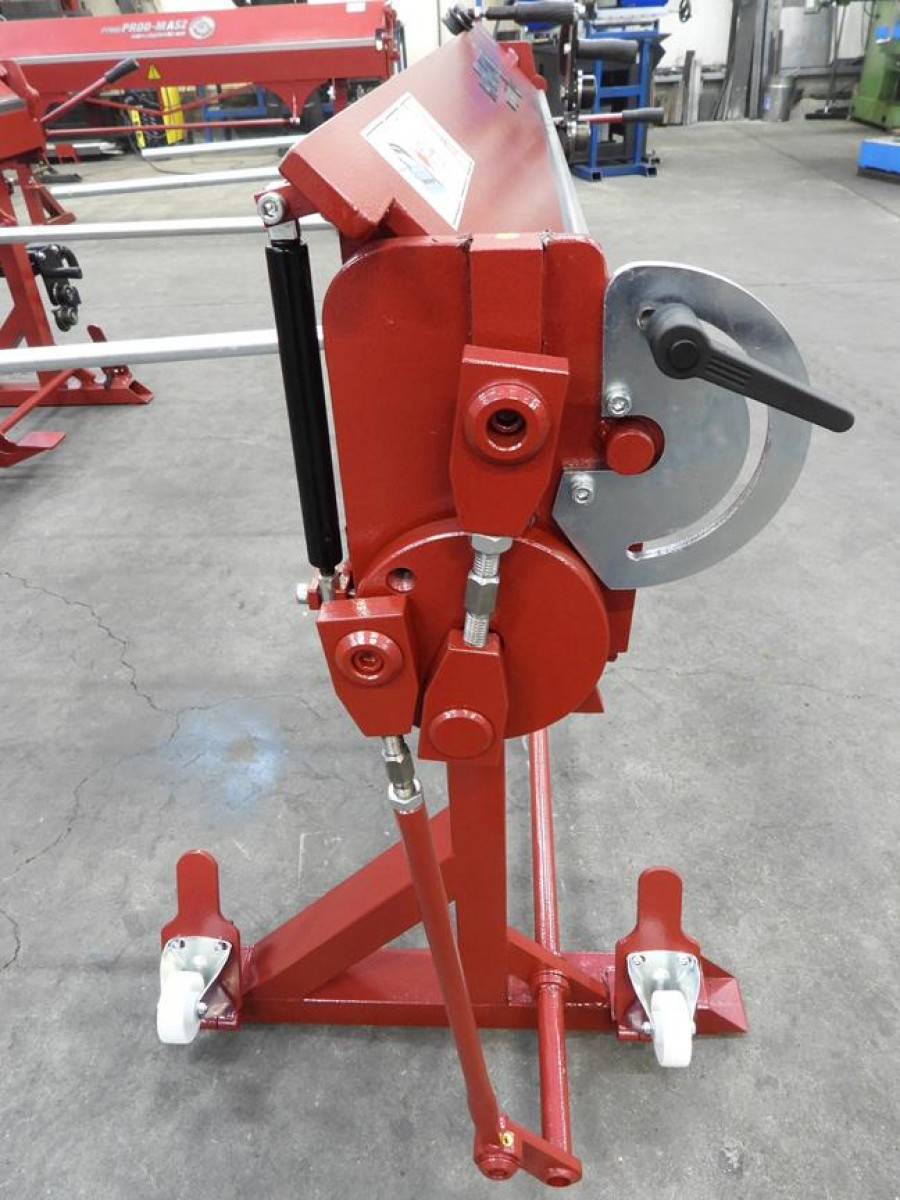

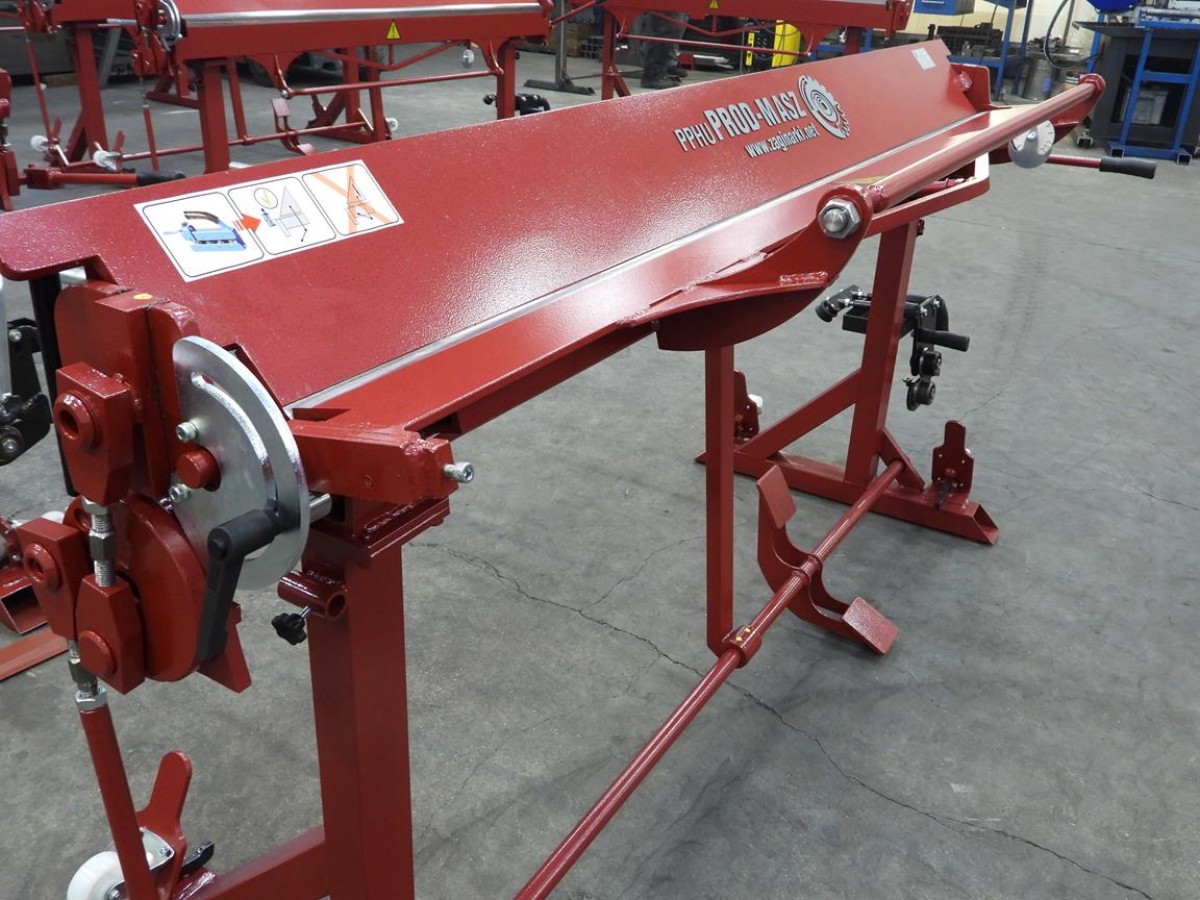

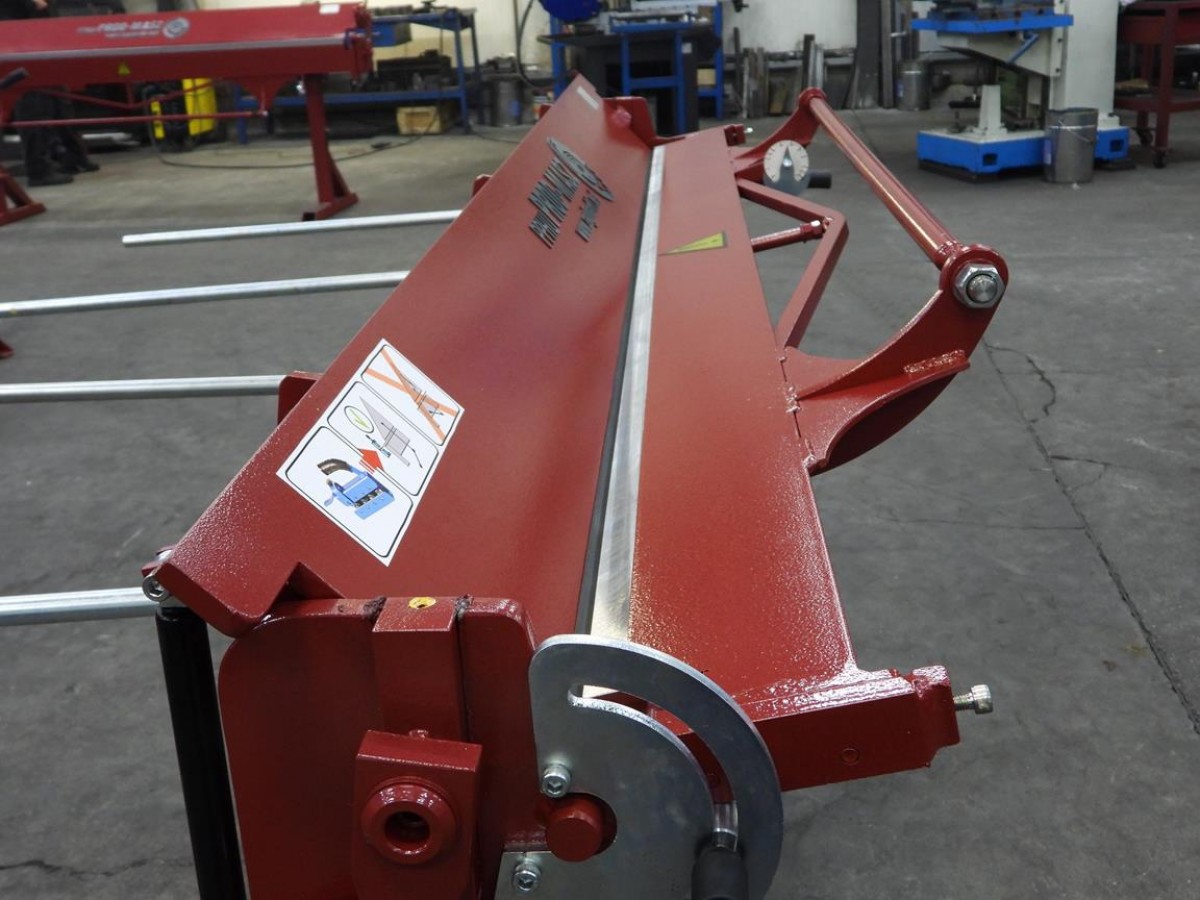

| protractor |
| angle stop to 90 degrees |
| rear bumpers |
| front depth stops |
| Weight: approx. 230 kg |
| Roller shears (max. Cutting capacity 0.8 mm / steel) |
| The machine complies with CE guidelines and has a 12-month warranty. |
