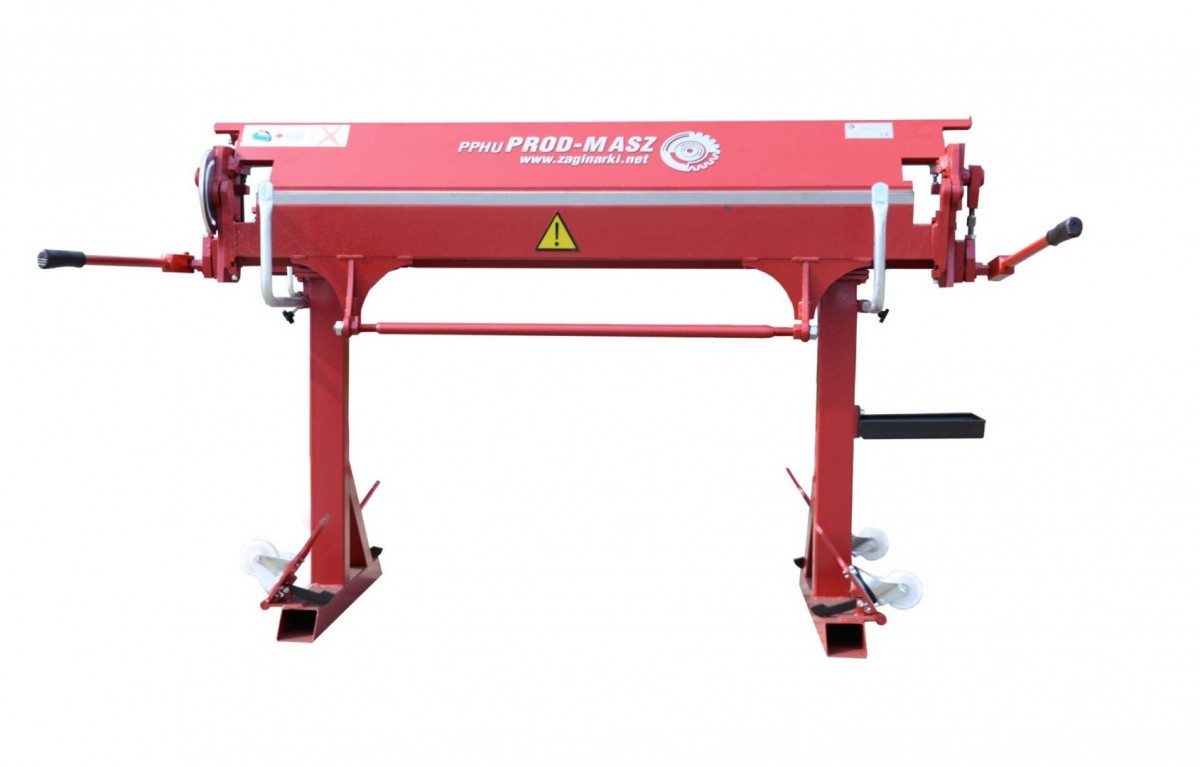

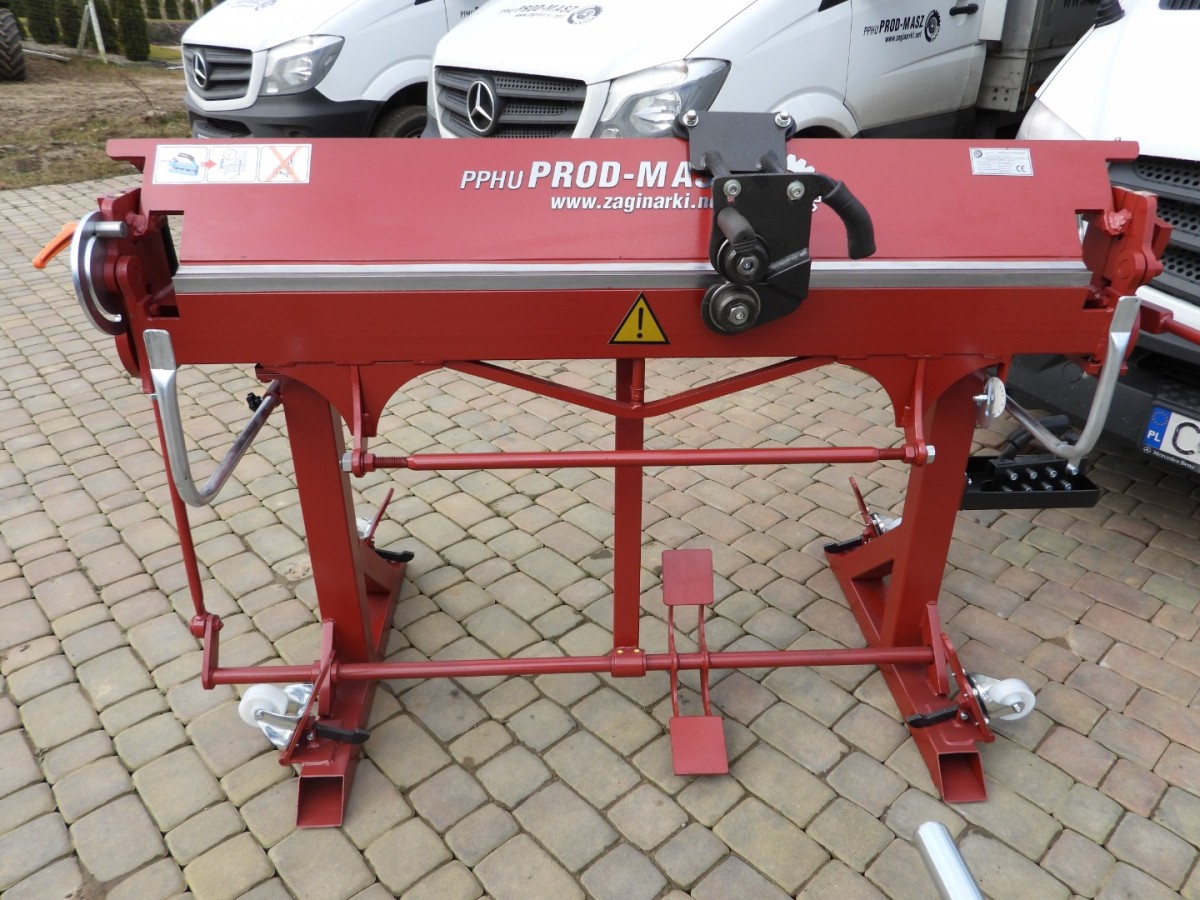

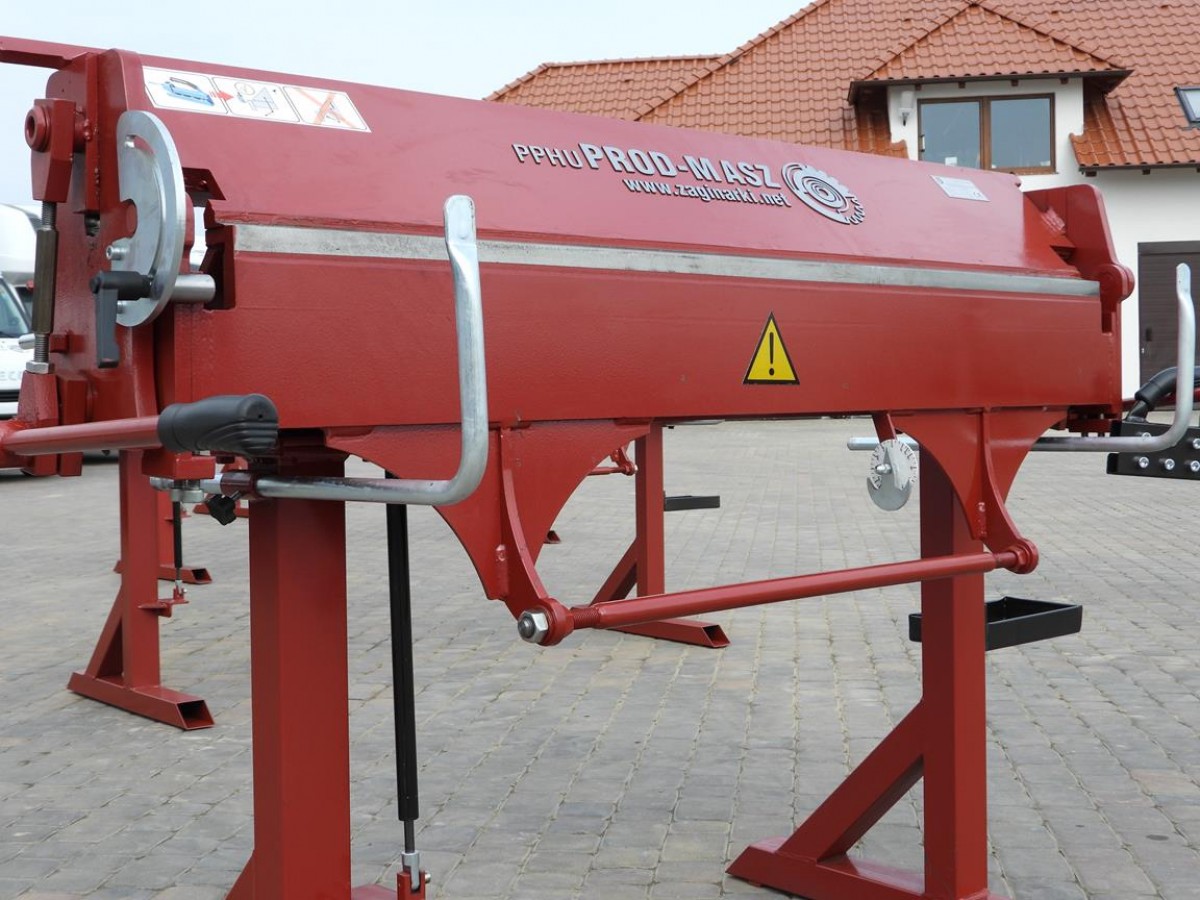

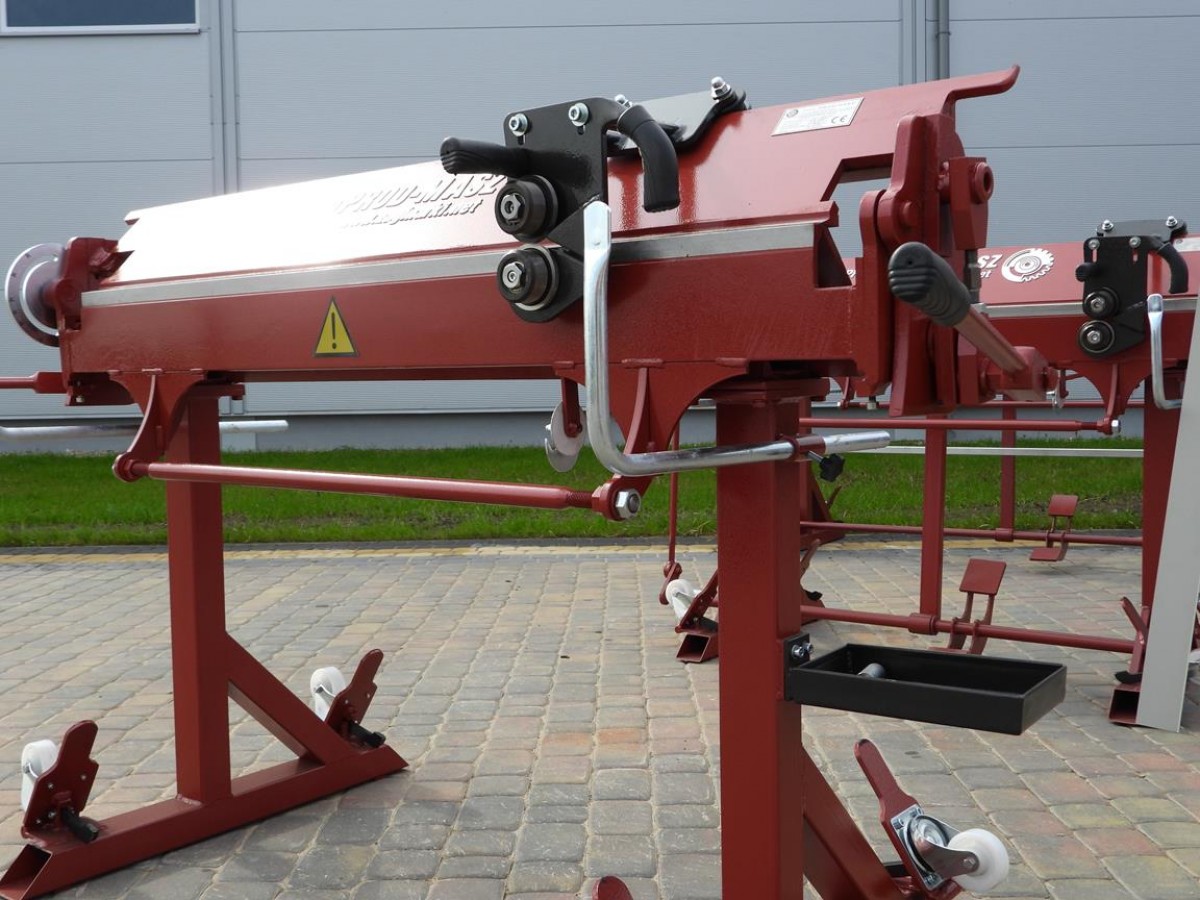

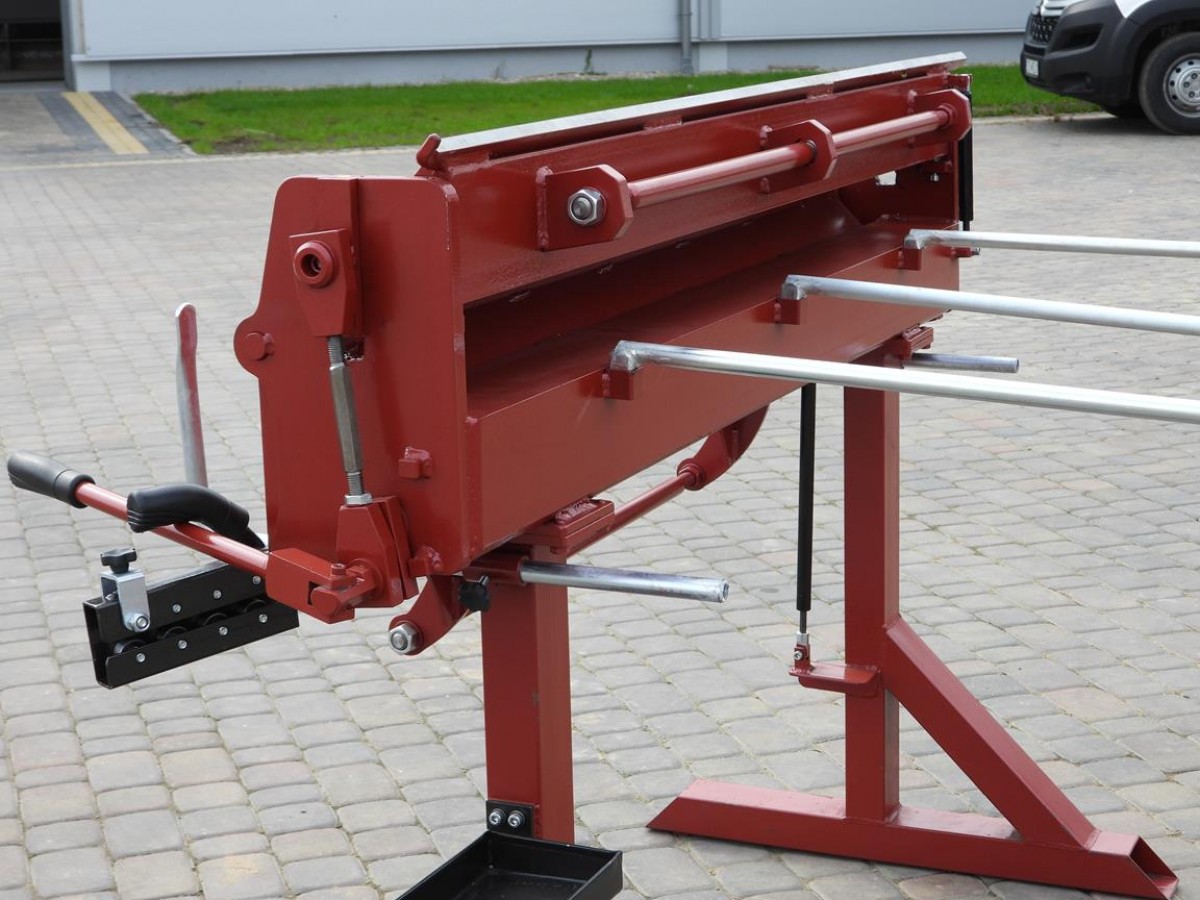

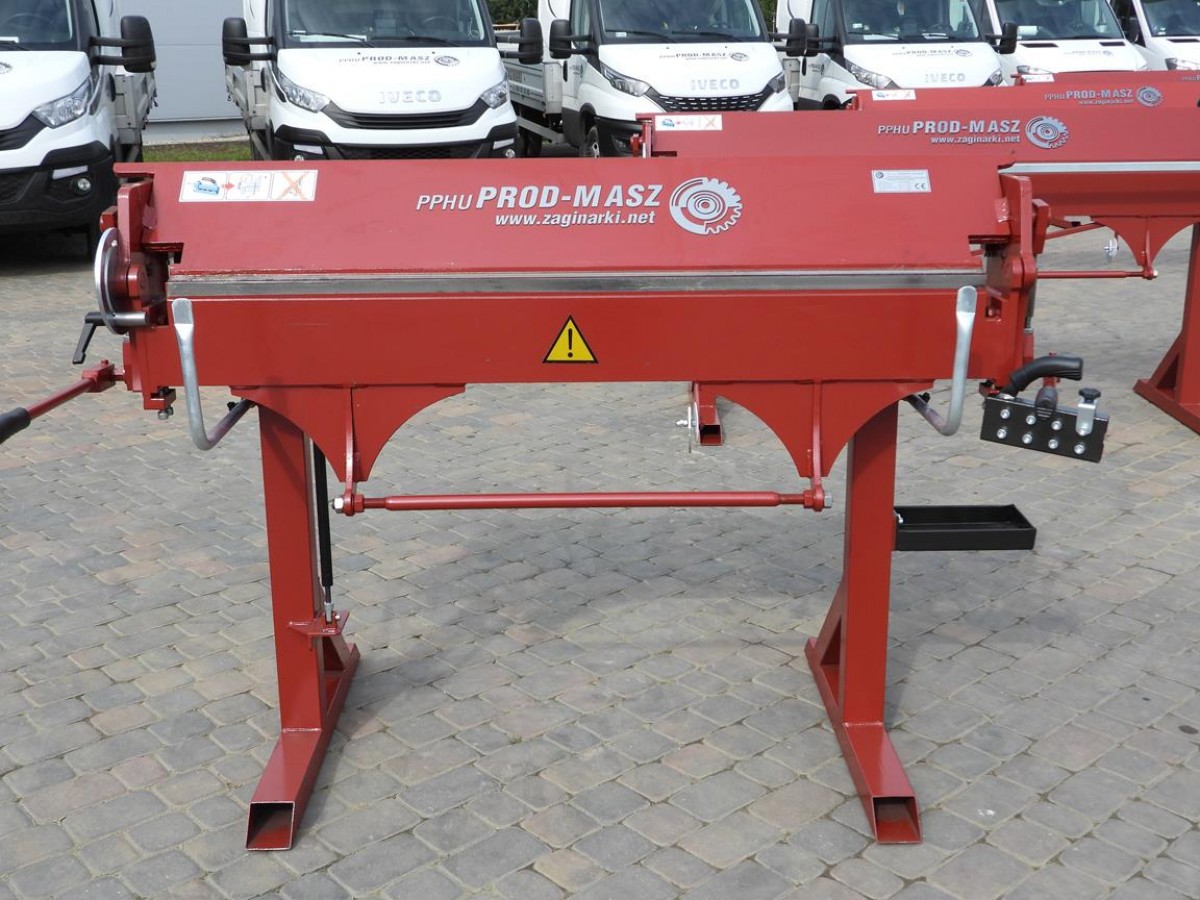

Sheet metal folder RED-1400/1.2/160*
The RED-1400/1.2mm bending machine is a compact and user-friendly machine designed mainly for roofers and tinsmiths.
Functional and reliable in use, it guarantees trouble-free operation without deformation of working elements.
Thanks to the narrow folding beam, you can make complex folds.

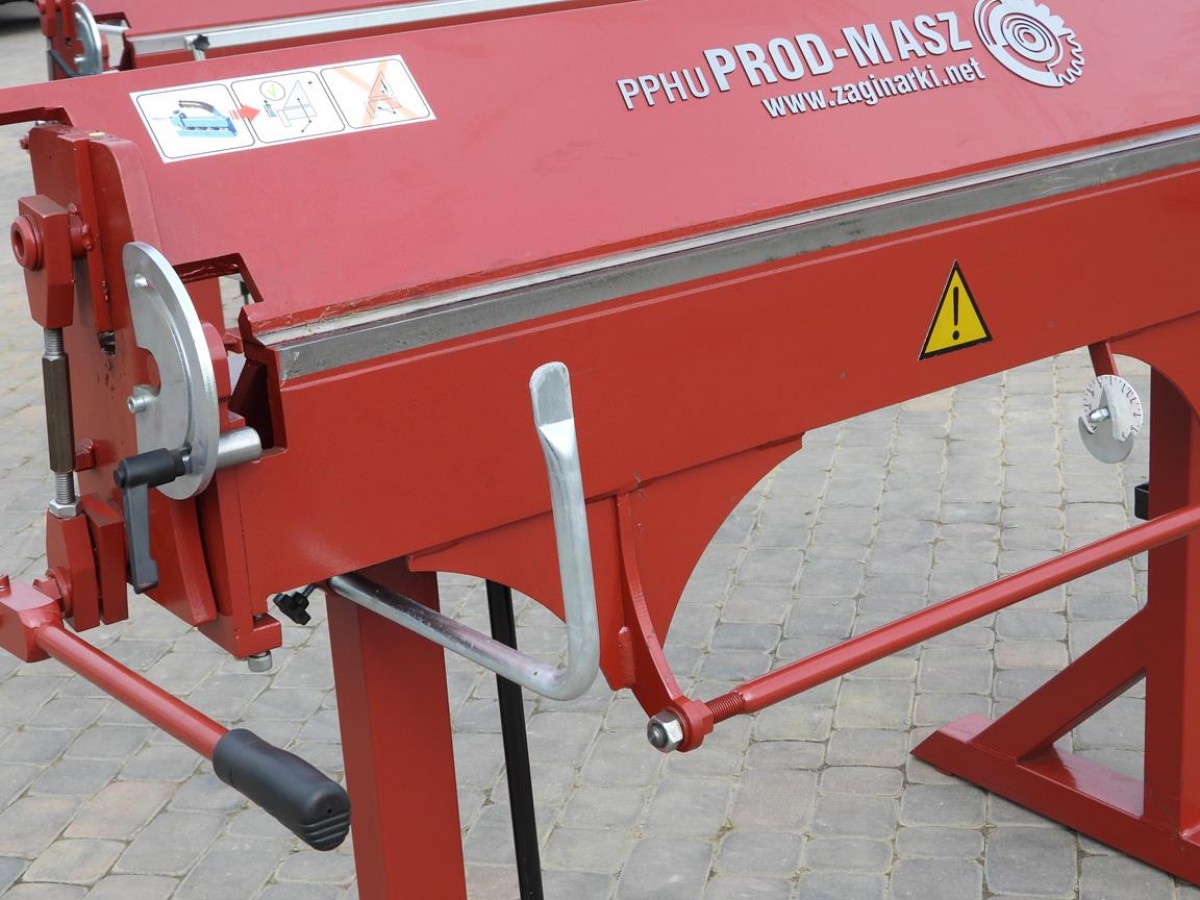

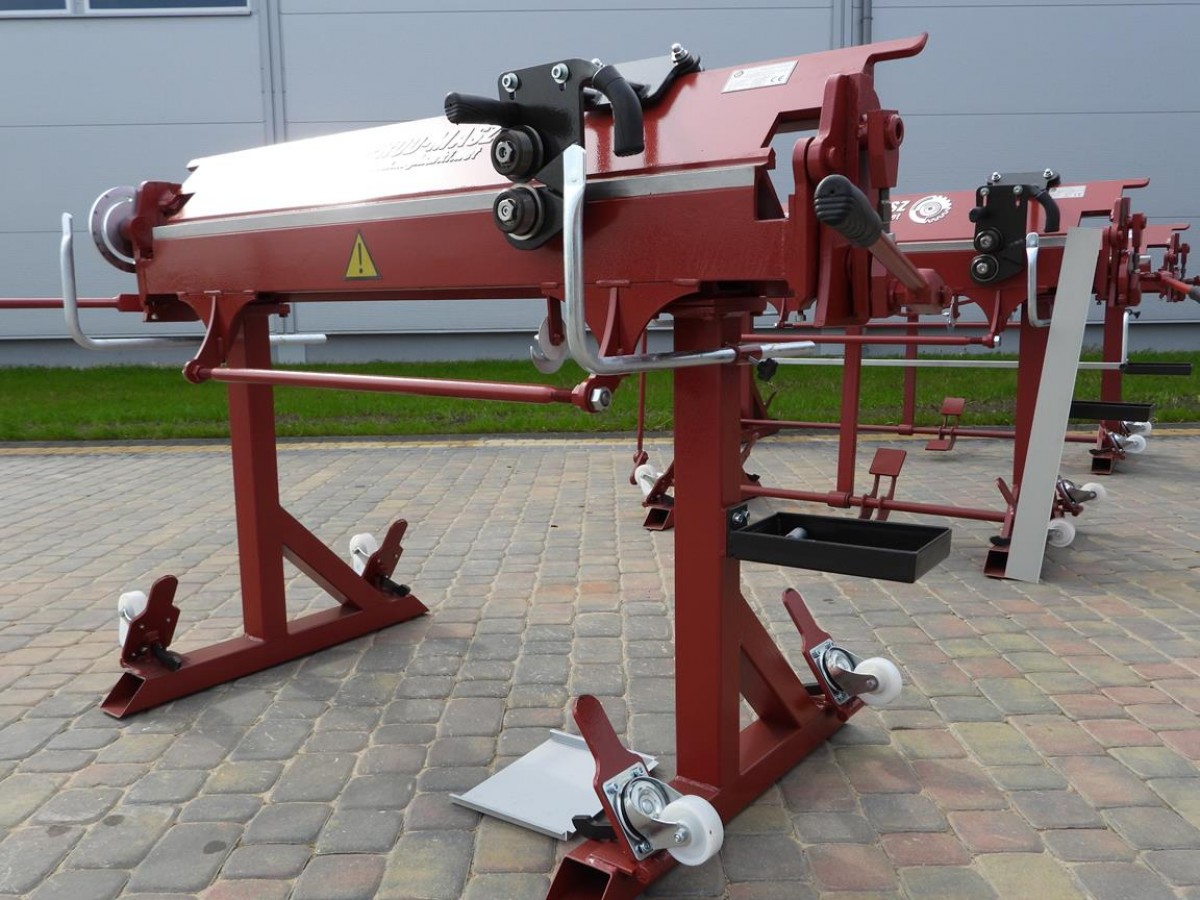

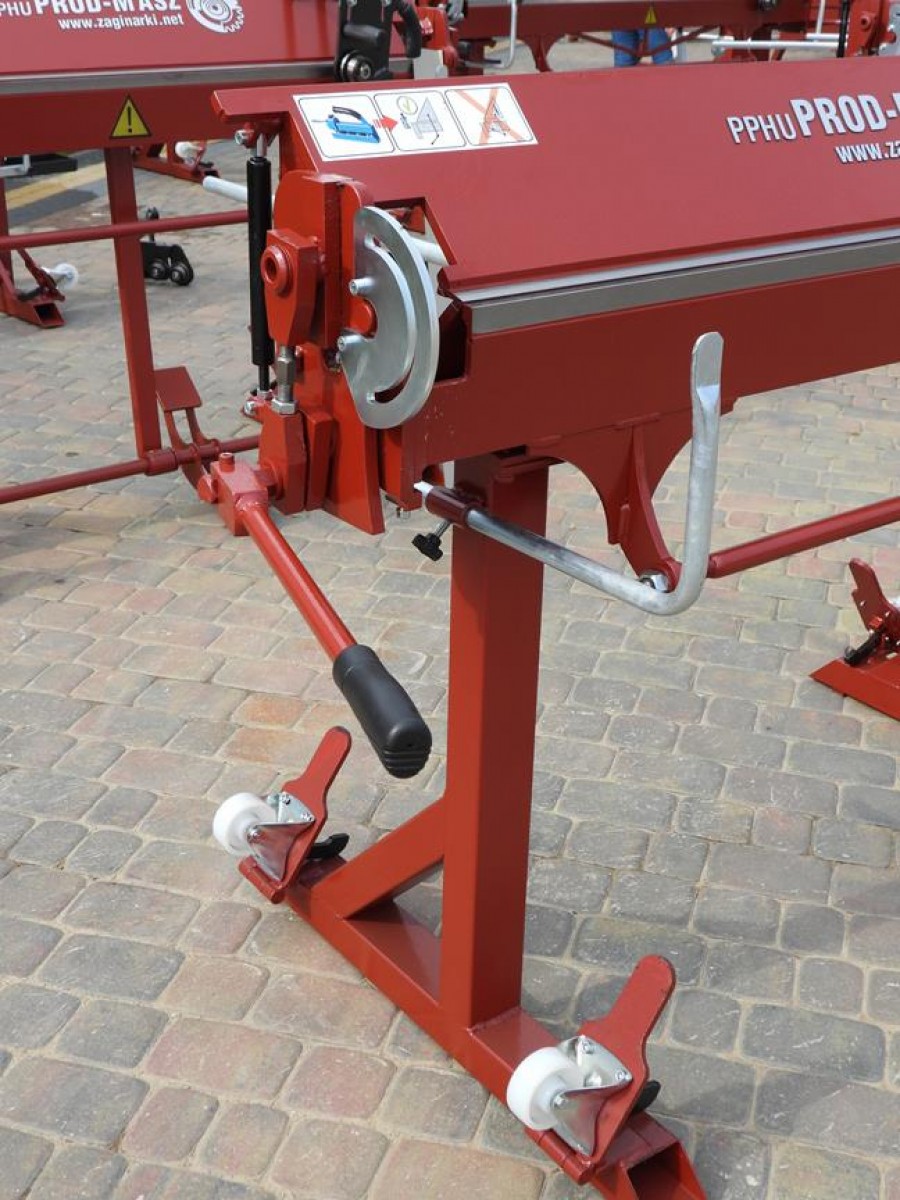

The RED-1400/1.2 mm bending machine has transport wheels and 2 levers on the right and left sides in the set.
Functional and reliable in use, it guarantees trouble-free operation without deformation of working elements.
Thanks to the narrow folding beam, you can make complex folds.
The RED-1400/1.2 mm bending machine has transport wheels and 2 levers on the right and left sides in the set.
Description
- Cut-outs on both sides of the machine 60 mm/45°
- Maximum working width: 1400 mm
- Bending capacity: up to 1.2 mm (steel sheet)
- Bending angle: 160 degrees
- bending edge thickness: 15 mm
- All non-ferrous metals 30% more bending capacity

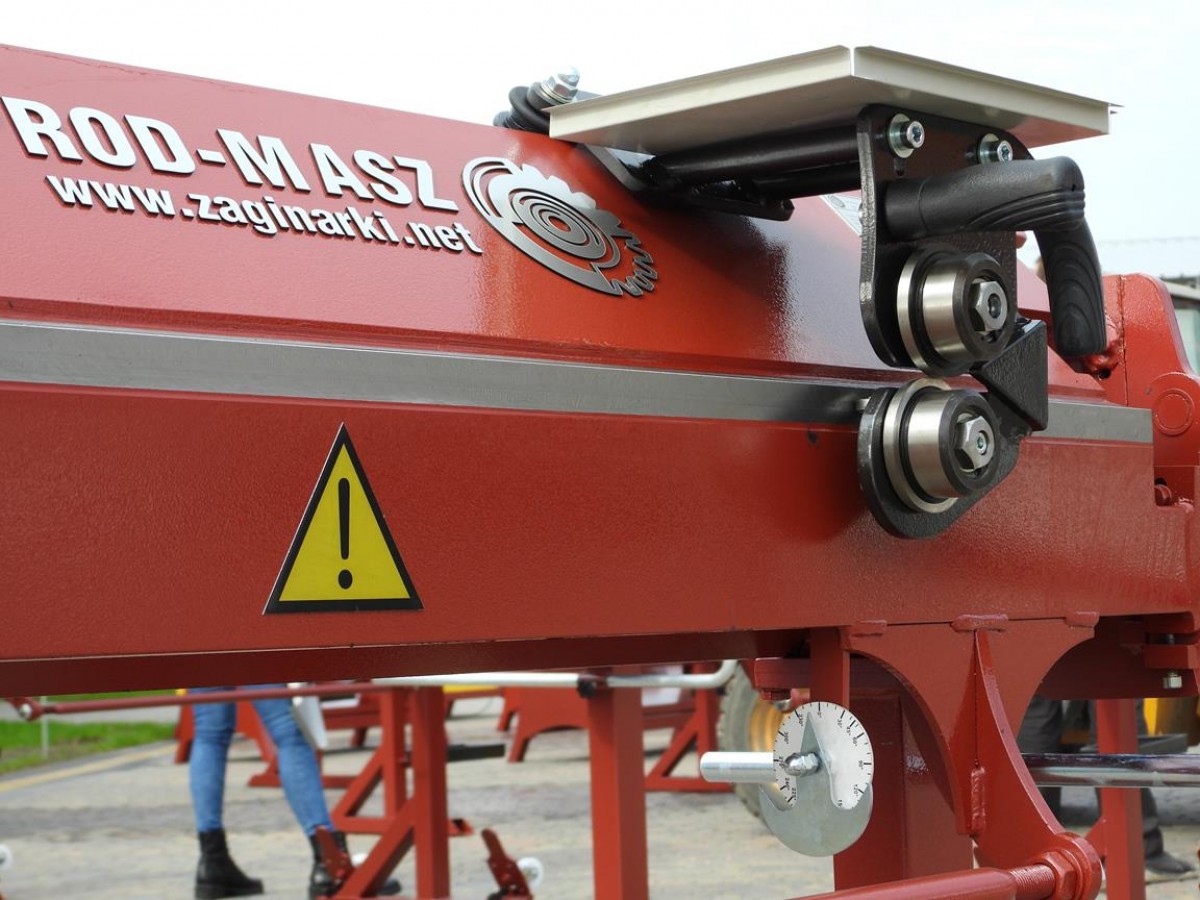

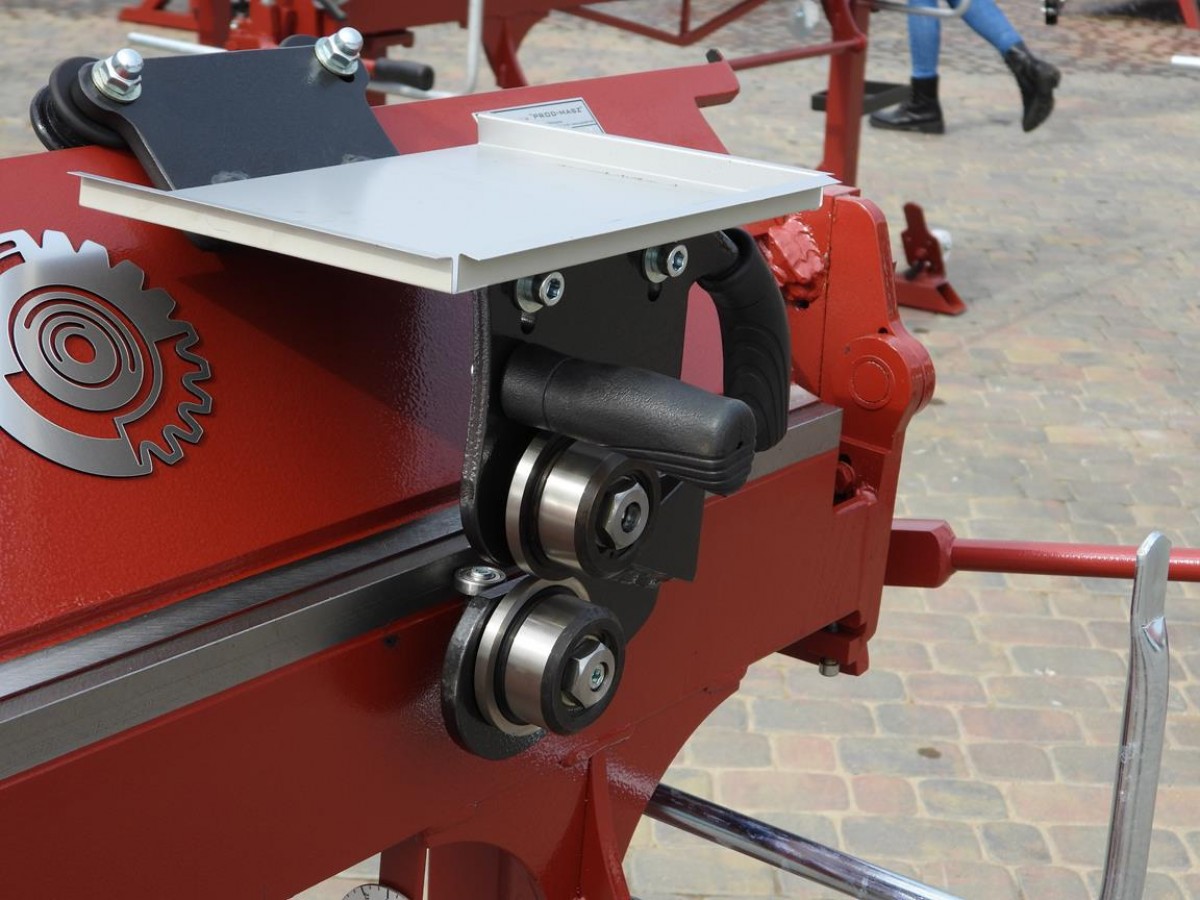

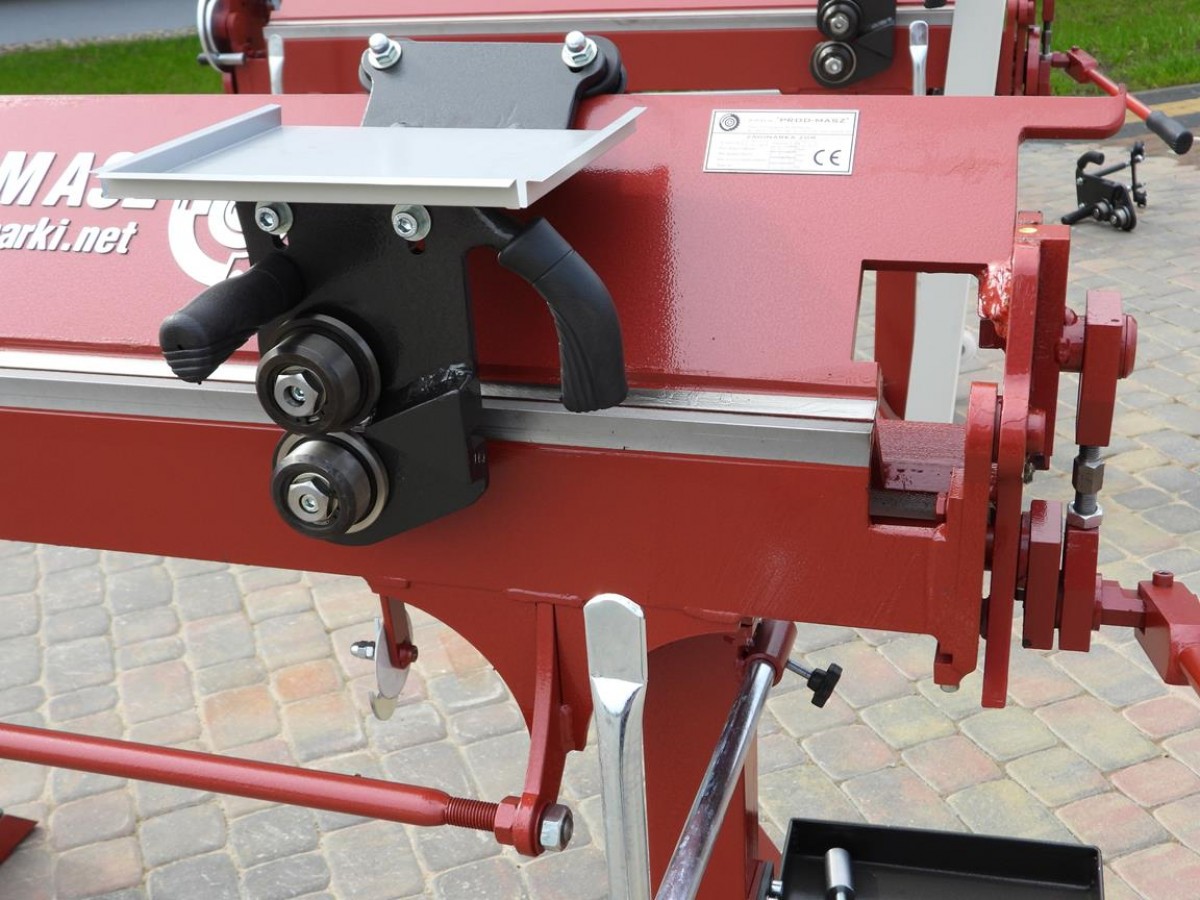

- Cutting with roller shears over the entire working width
- Lifting the upper beam in different positions
- max opening. 80 mm
- Weight approx. 250 kg
Equipment

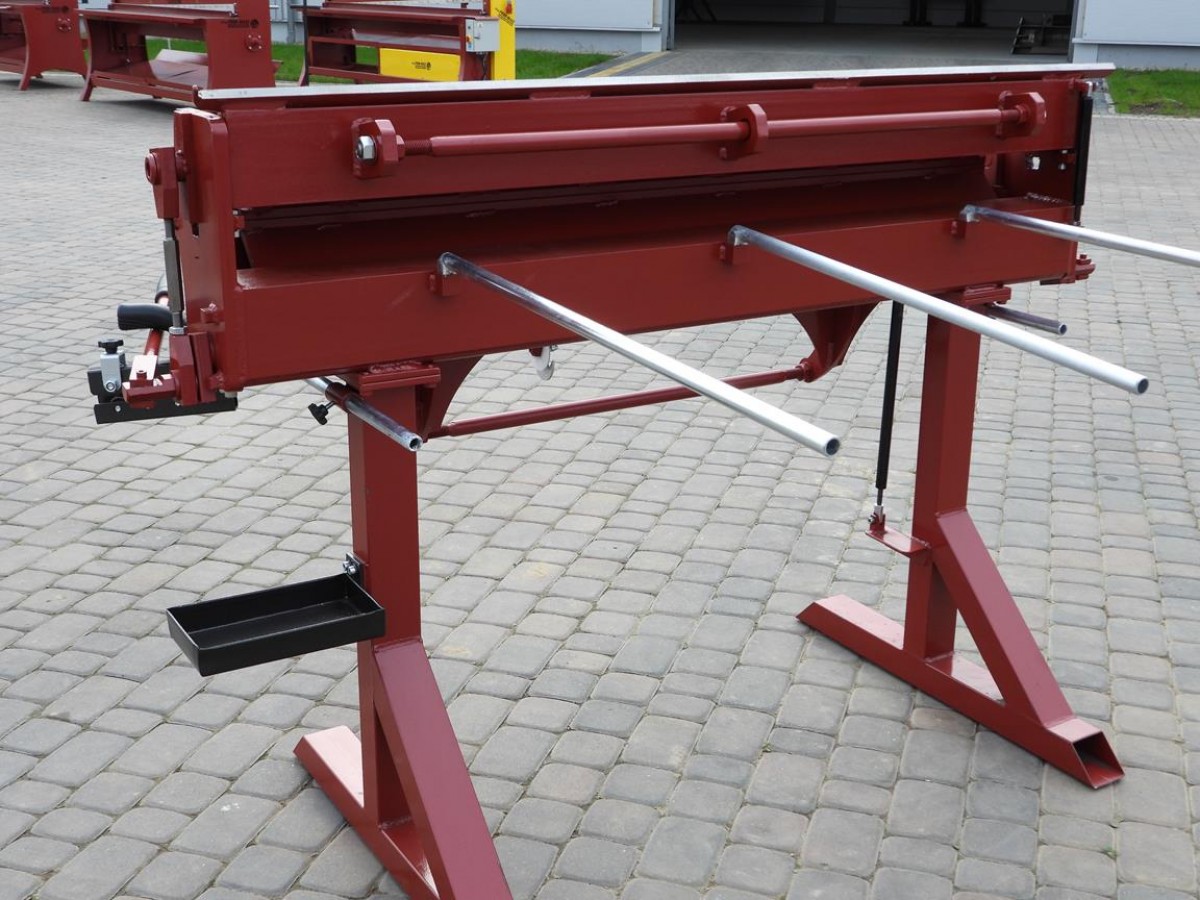

Rear table for holding sheet metal

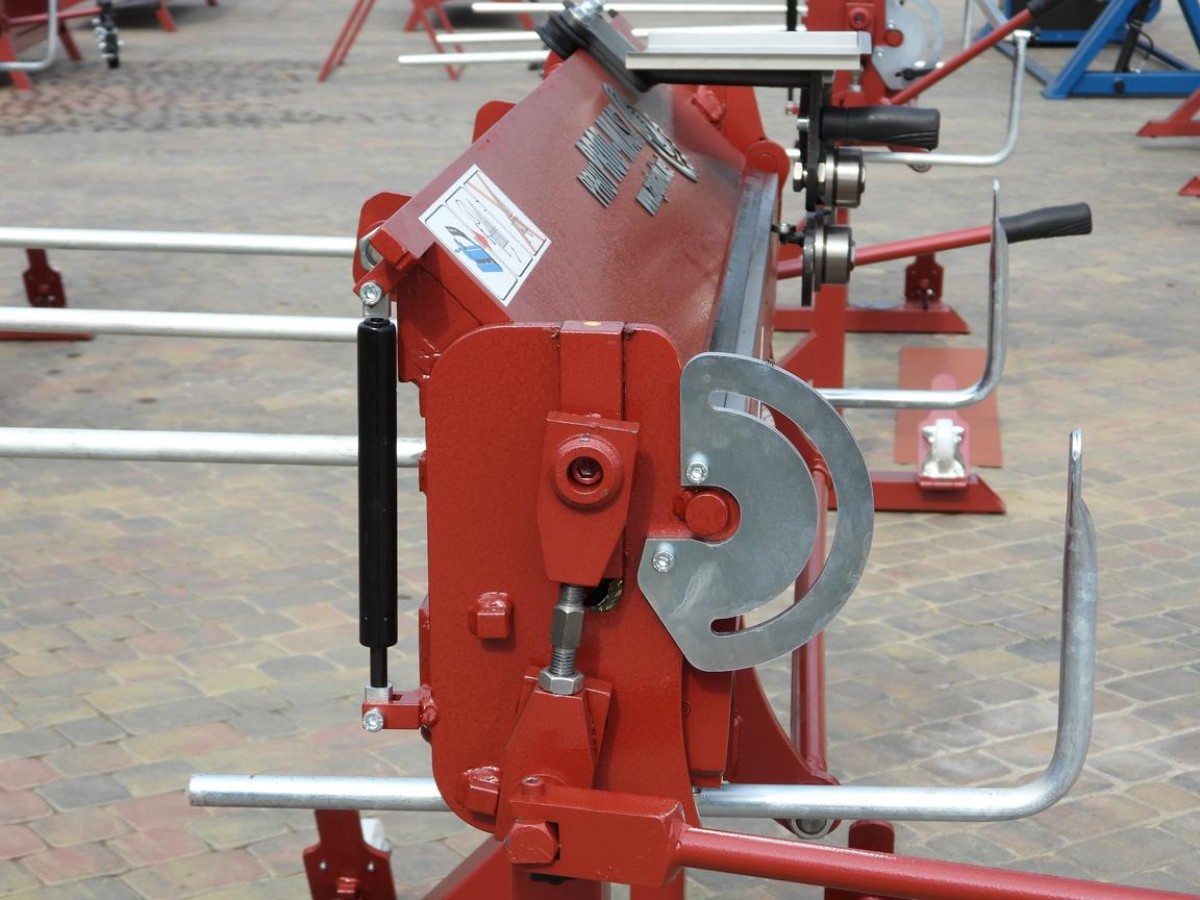

degree scale
angle limiter
Front depth gauges
- Maximum working width: 1400 mm
- Bending capacity: up to 1.2 mm (steel sheet)
- Bending angle: 160 degrees
- bending edge thickness: 15 mm
- All non-ferrous metals 30% more bending capacity
- Cutting with roller shears over the entire working width
- Lifting the upper beam in different positions
- max opening. 80 mm
- Weight approx. 250 kg
Equipment
Rear table for holding sheet metal
degree scale
angle limiter
Front depth gauges
Why choose PROD-MASZ products?
| Precise design |
| 12 months warranty |
| Highest quality |
| Special flexibility |
| EU Product with CE certificate |
| Versatility |
| Made in CNC technology |
Technical data
